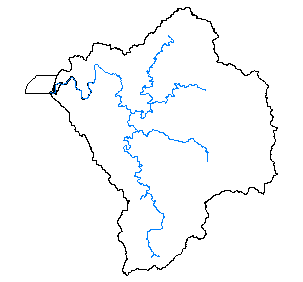

Spring Chinook Salmon Distribution for the Coquille Basin, 1998

Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: Oregon Department of Fish and Wildlife
Publication Date: 1999
Title: Spring Chinook Salmon Distribution for the Coquille Basin, 1998
Edition: 1998
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Salem, Oregon
Publisher: Oregon Department of Fish and Wildlife
Online Linkage: http://www.odfw.state.or.us
Larger Work Citation:
Citation Information:
Originator: Oregon Department of Fish and Wildlife
Publication Date: 1998
Title: Spring Chinook Salmon Distribution 1998
Publication Information:
Publication Place: Salem, Oregon
Publisher: Oregon Department of Fish and Wildlife
Online Linkage: http://www.odfw.state.or.us
Description:
Abstract:
Distribution of Spring Chinook. This is a DYNAMIC dataset in that it represents stream segments that are known to be used by Spring Chinook. However, these reaches may not be used on an annual basis due to natural variations in run size, water conditions and other environmental factors.
Purpose: To map known distribution of Spring Chinook salmon.
Supplemental Information:
This data was created through a process where 1:100,000 scale hardcopy maps were plotted by hydrologic unit and then provided to ODFW field staff. Based on survey data, supporting documentation and the best professional judgement of field biologists, the distribution of spawning, rearing and migration use types were then marked on the maps with highlighter pens. This data was then digitized by ODFW GIS staff and stored as event tables in Info file format. For mapping purposes, using the tools of dynamic segmentation, the event tables are combined with the 1:100,000 scale routed streams coverages on a HUC by HUC basis. For the purpose of distributing this data, we have converted the event tables into coverage format with the EVENTARC command.This results in a static version of the ""dynamic"" data, but in a more common format
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Time: Unknown
Ending Date: 1998
Ending Time: Unknown
Currentness Reference: 1998
Status:
Progress: Complete
Maintenance and Update Frequency: Every 2 years
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -119.5161
East Bounding Coordinate: -118.9548
North Bounding Coordinate: 43.3345
South Bounding Coordinate: 42.759
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Spring Chinook
Theme Keyword: Salmon
Theme Keyword: Fish Distribution
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Place Keyword: Coast
Access Constraints: None
Use Constraints: Many streams that contain Spring Chinook distribution are not found in the 1:100,000 scale streams data
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: Oregon Department of Fish and Wildlife
Contact Person: Keith Hupperts
Contact Address:
Address Type: mailing and physical address
Address: 2501 SW Fist Ave, PO Box 59
City: Portland
State or Province: Oregon
Postal Code: 97207
Country: USA
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Logical Consistency Report: Chain-node topology present.
Completeness Report: Many streams that contain Spring Chinook distribution are not found in the 1:100,000 scale streams data.
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: NA
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: NA
Lineage:
Source Information:
Source Contribution: lines and attributes. The Coquille Basin was simply clipped out of the larger Oregon dataset
Process Step:
Process Description: Down loaded .e00 files, unzipped, and clipped to Basin boundary.
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: Complete Chain
Point and Vector Object Count: 11
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: sprch.aat
Entity Type Definition: Arc Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Fnode#
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Fnode_
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: From
Attribute Definition: Stream mile beginning measure for distribution
Attribute Definition Source: ODFW GIS staff
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 28
Attribute:
Attribute Label: Habitat
Attribute Definition: Fish Use Type
Attribute Definition Source: ODFW Field Staff
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 1
Enumerated Domain Value Definition: Spawning and Rearing
Enumerated Domain Value: 2
Enumerated Domain Value Definition: Rearing and Migration
Attribute:
Attribute Label: Length
Attribute Definition: Length of line
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Llid
Attribute Definition: Longitude - Latitude ID Route identifier
Attribute Domain Values:
Unrepresentable Domain: Character Field
Attribute:
Attribute Label: Lpoly#
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Lpoly_
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Name
Attribute Definition: Stream Name
Attribute Definition Source: USGS and OR WRD
Attribute Domain Values:
Unrepresentable Domain: Character Field
Attribute:
Attribute Label: Rpoly#
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Rpoly_
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Sprch#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Sprch-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Sprch_
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Sprch_id
Attribute Definition: User Assigned feature ID
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 11
Attribute:
Attribute Label: Tnode#
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Tnode_
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: To
Attribute Definition: Measure of upstream river file of fish distributio
Attribute Definition Source: ODFW Field and GIS staff
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 47
Overview Description:
Entity and Attribute Overview:
Field Name: Habitat (fish use type) Value Description 1 Spawning and Rearing (defined as areas where eggs are deposited and fertilized, where gravel emergence occurs, and where at least some juvenile development occurs). 2 Rearing and Migration (defined as areas outside primary spawning habitats where juvenile fish take up residence during some stage of juvenile development and utilize the area for feeding, shelter, and growth. Some migration also occurs as juvenile and adult fish move between the ocean and spawning areas). 3 Migration (defined as areas where juvenile and/or adult fish pass through as they move between the ocean and spawning and rearing areas. While all migratory corridors provide some rearing opportunities, areas with this designation are distinguished by fish moving through fairly quickly making contributions to juvenile rearing insignificant).
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: Oregon Department of Fish and Wildlife
Contact Person: Keith Hupperts
Contact Address:
Address Type: mailing and physical address
Address: 2501 SW Fist Ave, PO Box 59
City: Portland
State or Province: Oregon
Postal Code: 97207
Country: USA
Resource Description: Spring Chinook Distribution 1998
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE
PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.
Custom Order Process: Contact Distributor or down load from : http://rainbow.dfw.state.or.us/data.html
Available Time Period:
Time Period Information:
Single Date/Time:
Calendar Date: 1993
Time of Day: Unknown
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
SMMS Metadata report generated 3/27/2002
