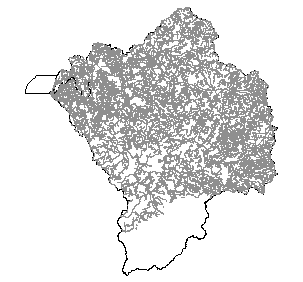

Roads for Coquille Basin, 1999 (1:24,000)
.gif)
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: US Bureau of Land Management, Coos Bay District
Publication Date: 199907
Title: Roads for Coquille Basin, 1999 (1:24,000)
Edition: 1999
Geospatial Data Presentation Form: Map
Publication Information:
Publisher: US Bureau of Land Management, Coos Bay District
Other Citation Details:
This Coquille basin coverage is a subset of the GTRN layer
as was available in 1999.
Online Linkage: http://www.reo.gov
Larger Work Citation:
Citation Information:
Originator: Oregon Bureau of Land Management
Publication Date: 2000
Title: Ground Transportation Roads & Trails
Online Linkage: http://www.or.blm.gov:80/gis/gsd/layers/transpo.html#GTRN
Description:
Abstract:
GTRN is a subset of the transportation themes. GTRN consists of the linear data for the transportation themes. This theme
provides a graphic portrayal of the transportation network for Oregon and Washington. This includes data originally
captured in the WODDB TRB theme, USGS DLGs and USFS CFFs.
Purpose: Resource Management Planning
Supplemental Information:
Bureau of Land Management), USFS (United States Forest Service), USGS (United States Geographic Survey), WODDB
(Wsetern Oregon Digital Database), TRB (WODDB Transportation Theme), QC3 (Third round of Quality Control for TRB theme), TIMS (Transportation Information Management System), FIMMS (Facilities Inventory Maintenance Management System), DLG (Digital Line Graph), CFF (Cartographic Feature File), RMP (Resource Management Plan), TMO (Transportation Maintenance Objective), O&C (Oregon & California Revested Railroad Lands), PD (Public Domain Lands),CBWR (Coos Bay Wagon Road Lands), MLR (Multiple Land Resource)
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1983
Beginning Time: Unknown
Ending Date: 1999
Ending Time: Unknown
Currentness Reference: 1999
Status:
Progress: In work
Maintenance and Update Frequency: Continually
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -121.0122
East Bounding Coordinate: -120.2164
North Bounding Coordinate: 43.4102
South Bounding Coordinate: 42.8337
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Roads
Theme Keyword: Trails
Theme Keyword: Resource Planning
Theme Keyword: Transportation
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coast
Place Keyword: Coquille
Place Keyword: Bandon
Access Constraints: Discretionary, contains no sensitive information; generally considered releasable.
Use Constraints: None
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: Bureau of Land Management, Coos Bay District
Contact Person: Lance Finnegan
Contact Position: GIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 1300 Airport Lane
City: North Bend
State or Province: Oregon
Postal Code: 97459
Country: USA
Contact Voice Telephone: 541-756-0100
Contact Facsimile Telephone: 541-756-9303
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Logical Consistency Report: Lines were Q.C.'ed by OR/WA BLM Office personnel for line accuracy. This theme was built with line topology.
Completeness Report: The parent theme covers Oregon and Washington. This coverage is the Coquille subset, as it existed in mid 1999.
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: Unknown
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: OR/WA BLM, USGS, USFS
Publication Date: 1993 , 19980731, 19980731, 1997, 1996
Title:
WODDB Transportation Network, Transportation Information
Management System , Facilities Inventory Maintenance
Management System, USGS Digital Line Graph, USFS
Cartographic Feature File,
Edition: 1993 , 19980731, 19980731, 1997, 1996
Geospatial Data Presentation Form: map
Publication Information:
Publication Place: Various
Publisher: OR/WA BLM, USGS, USFS
Other Citation Details: The various source data files were processed by BLM/Contractors to derrive the parent dataset.
Type of Source Media: Electronic data
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1983
Beginning Time: Unknown
Ending Date: 1997
Ending Time: Unknown
Source Currentness Reference: 1999
Source Contribution: Lines, attributes
Process Step:
Process Description:
FTP'd the export files (Coos Bay GTRN and Roseburg GTRN) from BLM ftp site; imported the files; clipped the Roseburg
GTRN file as needed; and appended the 2 files to make a single coverage.
Process Date: 1999
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: Complete Chain
Point and Vector Object Count: 23056
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: rds24blm.aat
Entity Type Definition: Arc Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Acc_rgt
Attribute Definition:
Access Right : Required data for BLM inventoried roads and
trails. Not Applicable to ""Non-inventoried Significant"" (NIS) Roads
and trails.Optional for ""Non-inventoried Other"" (NIO) roads and trails
- where needed. Access Right records who is legally allowed to enter the road.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Arc_key
Attribute Definition:
Required data for arcs. A unique key to identify each
arc. To be used to link to separate tables containing additional attribute fields
(if needed). System generated number.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 11-character field (ex 22866143280)
Attribute:
Attribute Label: Attrib_src
Attribute Definition:
Attribute Source : Required data for all roads and trails.
The primary source of attributes used during construction of the
Interim GTRN layer. This field will not be updated once established.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Avrg_wdth
Attribute Definition:
Average Route Segment Width: Required data for BLM
inventoried roads and trails. For other roads and trails, it is optional. Records the
average width of a route
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 2-character field, Units of Measure: FEET
Attribute:
Attribute Label: Cbwr_miles
Attribute Definition:
Miles on CBWR Lands : Required data for BLM inventoried
roads and trails if on CBWR. Not applicable to noninventoried roads and trails.
Ground measured (clocked) length (miles) of the segment on CBWR Lands.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 5 Digit NUM field with 2 decimal accuracy
Attribute:
Attribute Label: Clsr_rsn
Attribute Definition:
Reason of Closure : Required data If Closure Status Open
for BLM inventoried Roads and trails, otherwise, leave blank. Not
applicable for non-inventoried roads and trails. Records why the road has
been closed
Attribute Definition Source: BLM
Attribute:
Attribute Label: Clsr_stat
Attribute Definition:
Closure Status : Required data for BLM inventoried roads
and trails. For other roads and trails, it is optional. Limitations
placed on a road or trail which is governed by constraints identified in the RMP and TMO
Attribute Definition Source: BLM
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: DR
Enumerated Domain Value Definition: Decommission of Road
Enumerated Domain Value: NKN
Enumerated Domain Value Definition: Not Known
Enumerated Domain Value: OP
Enumerated Domain Value Definition: Open
Enumerated Domain Value: ST
Enumerated Domain Value Definition: Short Term Closure
Attribute:
Attribute Label: Clsr_yr
Attribute Definition:
Closure Year: Required If Closure Status Open for BLM
inventoried roads and trails and where closure occurred in FY1994 or
later. Not applicable to non-inventoried roads and trails. Records the
year the decision was made to close the road.
Attribute Domain Values:
Unrepresentable Domain: 4-Character Year Field
Attribute:
Attribute Label: Cnstr_yr
Attribute Definition:
Construction Year: Required for all BLM roads and trails
dated FY 1994 or later. Optional for roads and trails built in previous
years. Records the construction year (FY) of the route
Attribute Domain Values:
Unrepresentable Domain: 4-character Year
Attribute:
Attribute Label: Cnty_cd
Attribute Definition:
County: Required data for all BLM inventoried roads and
trails. Optional for non-inventoried roads and trails. County of
Route origin. County FIPS codes. Need to be combined with STATE_CD for unique identifier.
Attribute Domain Values:
Unrepresentable Domain:
3- Character Field where: 001 - Baker 025 - Harney 049 -
Morrow
003 - Benton 027 - Hood River 051 - Multnomah
005 - Clackamas 029 - Jackson 053 - Polk
007 - Clatsop 031 - Jefferson 055 - Sherman
009 - Columbia 033 - Josephine 057 - Tillamook
011 - Coos 035 - Klamath 059 - Umatilla
013 - Crook 037 - Lake 061 - Union
015 - Curry 039 - Lane 063 - Wallowa
017 - Deschutes 041 - Lincoln 065 - Wasco
019 - Douglas 043 - Linn 067 - Washington
021 - Gilliam 045 - Malheur 069 - Wheeler
023 - Grant 047 - Marion 071 - Yamhill
Attribute:
Attribute Label: Control
Attribute Definition:
Control: Required data for BLM inventoried roads and
trails. Recommended for NIS. Optional for NIO. The entity that
legally controls the road or trail and has the authority/responsibility to
perform road maintenance and set other terms and conditions of road use. Land
ownership does not necessarily mean you control the road. You may own the land
but not control the road or you may control the road and not own the land.
Attribute Definition Source: BLM
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: BLM
Enumerated Domain Value Definition: BLM
Enumerated Domain Value: BP
Enumerated Domain Value Definition: BLM / Private
Enumerated Domain Value: NKN
Enumerated Domain Value Definition: Not Known
Enumerated Domain Value: OTA
Enumerated Domain Value Definition: Other Agency
Enumerated Domain Value: PB
Enumerated Domain Value Definition: Private / BLM
Enumerated Domain Value: PVT
Enumerated Domain Value Definition: Private
Attribute:
Attribute Label: Dist_cd
Attribute Definition:
District : Required data for all BLM inventoried roads and
trails. Optional for non-inventoried roads and trails. BLM Administrative District of
Route origin. Codes from this field need to be combined with STATE_CD to
make a unique identifier.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Dist_ra_cd
Attribute Definition:
District and Resource area code : Not to be filled in.
Redefinition of District and Resource Area codes. Creates a single field with a unique statewide
Resource Area code.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: See DIST_CD & RA_CD definitions
Attribute:
Attribute Label: Fnode#
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Fnode_
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Inv_cat
Attribute Definition:
Inventory Category: Required data for all roads and trails.
Categorizes whether a route is inventoried by the BLM, or is not
inventoried. Inventory category does NOT infer ownership or control.
Attribute Definition Source: BLM
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: BLM
Enumerated Domain Value Definition: BLM - BLM Inventoried
Enumerated Domain Value: NIO
Enumerated Domain Value Definition: Non-Inventoried other
Enumerated Domain Value: NIS
Enumerated Domain Value Definition: Non-Inventoried Significant
Enumerated Domain Value: NKN
Enumerated Domain Value Definition: Not Known
Attribute:
Attribute Label: Length
Attribute Definition: Length of line
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Lpoly#
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Lpoly_
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Maint_lvl
Attribute Definition:
Maintenance Level : Required data for BLM inventoried roads
and trails. Not applicable to Non-Inventoried roads and trails. The
appropriate maintenance for a road or trail that best fits the TMO
recommended management activity.
Attribute:
Attribute Label: Maint_resp
Attribute Definition:
Maintenance Responsibility : Required data for BLM
inventoried roads and trails. Not applicable to Non-inventoried roads and trails. The
agency or entity responsible for maintenance of the road or trail.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Mlr_miles
Attribute Definition:
Miles on MLR Lands : Required data for BLM inventoried
roads and trails if Multiple Land Resource (MLR). Not applicable to
non-inventoried roads and trails. Ground measured (clocked) length (miles) of the
segment on MLR Lands.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 5 Digit NUM field with 2 decimal accuracy
Attribute:
Attribute Label: Mop_yr
Attribute Definition:
Maintenance Operation Plan Year : Recommended data for BLM
inventoried Roads. Not applicable to non-inventoried roads and trails. Fiscal year
in which the the route segment is scheduled for maintenance.
Attribute Domain Values:
Unrepresentable Domain: 4- Character Year Field
Attribute:
Attribute Label: Num_lns
Attribute Definition:
Number of Lanes: Required data for BLM inventoried roads.
Optional for NonInventoried roads and trails. Records the number of
lanes of a road.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Oc_miles
Attribute Definition:
Miles on O&C Lands : Required data for BLM inventoried
roads and trails if on O&C. Not applicable to non-inventoried roads and trails.
Ground measured (clocked) length (miles) of the segment on O&C Lands.
Attribute Domain Values:
Unrepresentable Domain: 5 Digit NUM field with 2 decimal accuracy
Attribute:
Attribute Label: Ol_miles
Attribute Definition:
Miles on Other Lands : Required data for BLM inventoried
roads and trails if on Other Lands. Not applicable to non- inventoried roads
and trails. Ground measured (clocked) length (miles) of the segment on Other Lands.
Attribute Domain Values:
Unrepresentable Domain: 5 Digit NUM field with 2 decimal accuracy
Attribute:
Attribute Label: Optional_1
Attribute Definition:
Optional Field : A field to be used at the choice of
District Offices.
Attribute Domain Values:
Unrepresentable Domain: 20-Character Field
Attribute:
Attribute Label: Own_dsgtn
Attribute Definition:
Ownership Designation: Required data for all BLM
inventoried and NIS roads and trails. Recommended for NIO. Distinguishes the entity
which ""owns"" the route. Ownership designation is similar to Control (see
CONTROL attribute) but Control is more management specific and does not allow
for other agencies such as federal highways.
Attribute Definition Source: BLM
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: BIA
Enumerated Domain Value Definition: Bureau of Indian Affairs
Enumerated Domain Value: BLM
Enumerated Domain Value Definition: Bureau of Land Management
Enumerated Domain Value: CNTY
Enumerated Domain Value Definition: County route
Enumerated Domain Value: NKN
Enumerated Domain Value Definition: Not Known
Enumerated Domain Value: PVT
Enumerated Domain Value Definition: Private road
Enumerated Domain Value: STH
Enumerated Domain Value Definition: State highway
Enumerated Domain Value: USH
Enumerated Domain Value Definition: U.S. Highway
Attribute:
Attribute Label: Pd_miles
Attribute Definition:
Miles on PD Lands : Required data for BLM inventoried roads
and trails if on PD. Not applicable to noninventored roads and trails.
Ground measured (clocked) length (miles) of the segment on PD Lands.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 5 Digit NUM field with 2 decimal accuracy
Attribute:
Attribute Label: Ra_cd
Attribute Definition:
Resource Area : Required data for all BLM inventoried roads
and trails.
Optional for non-inventoried roads and trails. BLM
Administrative Resource Area of Route origin. Codes from this field need to be
combined with STATE_CD and DIST_CD to make a unique identifier. RA_CD has
been combined with DIST_CD in the re- defined field DIST_RA_CD.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Rds24blm#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Rds24blm-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Rds24blm_n
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 42372
Attribute:
Attribute Label: Road_cls
Attribute Definition: Road Functional Classification
Attribute:
Attribute Label: Route_id
Attribute Definition:
Route Identifier : Not to be filled in. Redefinition of
Route Number and Route Segment. Used as a relate key by some Districts.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: See RT_NUM & RT_SEG definitions
Attribute:
Attribute Label: Rpoly#
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Rpoly_
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Rt_nm1
Attribute Definition:
Route Primary Name : Required data (if exists) for BLM
inventoried Roads
and trails. Recommended for NIS and optional for NIO. This
field is intended for use in labeling road features on output maps. Examples
include local road names, highway names, Forest Service road numbers, etc. If
a route is identified by both a name and a number (i.e., Banfield &
I-84), place the number in this field and name in the Secondary Route Name field.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 25-Character Field
Attribute:
Attribute Label: Rt_nm2
Attribute Definition:
Route Secondary Name : Recommended data for BLM inventoried
and NIS if a second name is assigned to the route. Optional for NIO.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 25-Character Field
Attribute:
Attribute Label: Rt_nm3
Attribute Definition: Route Tertiary Name (RT_NM3)
Attribute:
Attribute Label: Rt_num
Attribute Definition:
Route Number : Required data for BLM inventoried roads and
trails. Optional for NIO (see Inventory Category attribute) roads
and trails which are on BLM property. NOT to be used for NIS (see Inventory
Category attribute) roads and trails or for NIO roads and trails not
on BLM property. Provides the identifier for BLM Roads and trails.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 15-charcter field (ex 14 S 02 W 25.02 (include spaces))
Attribute:
Attribute Label: Rt_seg
Attribute Definition:
Route Segment: Required data for BLM inventoried roads and
trails (if exists). Optional for NIO roads and trails which are on BLM
managed land. NOT to be used for NIS roads and trails or for NIO roads
and trails not on BLM managed land. This field provides the route segment identifier.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain:
6-charcter field consisting of single letters
for TIMS data or decimal numbers for FIMMS data (ex A, B, C
etc. or 0.00, 2.21, 1.09, 10.23)
Attribute:
Attribute Label: Rt_seg_key
Attribute Definition:
Route Segment Key: Required data for BLM inventoried roads
and trails. Recommended for non-inventoried roads and trails. A unique
key to identify route (road and trail) segments.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 10-character field (ex 2866143280)
Attribute:
Attribute Label: Rt_typ
Attribute Definition:
Route Type: Required data for all roads and trails.
Distinguishes whether the feature is a road or a trail. A road is defined
as a linear ""transportation facility"" on which state-licensed (street
legal), four wheeled vehicles can travel. Other GTRN features are considered trails.
Attribute Definition Source: BLM
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: NKN
Enumerated Domain Value Definition: Not Known
Enumerated Domain Value: RD
Enumerated Domain Value Definition: Road
Enumerated Domain Value: TRL
Enumerated Domain Value Definition: Trail
Attribute:
Attribute Label: Sbj_nm_key
Attribute Definition:
GIS Subject Name: This name exists for those roads which
were present in the TRB theme for QC3. A unique key to identify individual
arcs that link to TIMS records.
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain:
10-character field populated from the TIMS GIS_SUBJECT_NAME
field. (ex S14W02_57)
Attribute:
Attribute Label: Spatialedi
Attribute Definition:
Spatial Edit Date : Required data for all roads and trails
on update. Full Date Field. (Month, Day, Year)
Attribute Definition Source: BLM
Attribute Domain Values:
Unrepresentable Domain: 8-number date field (MM,DD,YYYY)
Attribute:
Attribute Label: Spatialsou
Attribute Definition: Spatial Data Source (SPATIALSOURCE)
Attribute:
Attribute Label: Spec_dsgtn
Attribute Definition:
Special Designation: Required data for all BLM inventoried
roads. Optional for NIS roads and trails. Not applicable to NIO roads and
all trails. Populated from TIMS/FIMMS. More than one of these attributes may
apply to a single route segment. If this is the case, choose the most
important attribute.
Attribute Definition Source: BLM
Attribute:
Attribute Label: State_cd
Attribute Definition:
State : Required data for all BLM inventoried roads and
trails. Optional for non-inventoried roads and trails.
Geographic state of Route
origin.
Attribute Domain Values:
Unrepresentable Domain: 2-Character State Abbreviation Field
Attribute:
Attribute Label: Surf_cndtn
Attribute Definition:
Surface Condition: Required data for all BLM inventoried
roads and trails if Closure Status = Open or Seasonal. Not applicable to
non-inventoried roads and trails. Describes the condition of a BLM
inventoried route surface. Condition surveys are not done on other roads and trails.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Surf_typ
Attribute Definition: Surface Type
Attribute Definition Source: BLM
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: ABC
Enumerated Domain Value Definition: Aggregate Base
Enumerated Domain Value: ASC
Enumerated Domain Value Definition: Aggregate Surface
Enumerated Domain Value: BST
Enumerated Domain Value Definition: Bituminous
Enumerated Domain Value: CSS
Enumerated Domain Value Definition: Crushed Sandstone
Enumerated Domain Value: GRR
Enumerated Domain Value Definition: Grid rolled
Enumerated Domain Value: HDS
Enumerated Domain Value Definition: Hard Surface
Enumerated Domain Value: NAT
Enumerated Domain Value Definition: Natural Unimproved
Enumerated Domain Value: NKN
Enumerated Domain Value Definition: Not Known
Enumerated Domain Value: PRR
Enumerated Domain Value Definition: Pit Run
Attribute:
Attribute Label: Tmo_imp_yr
Attribute Definition:
TMO Implementation Year : Required for all BLM roads when
TMO Recommended Action is not NULL. Not applicable to
non-inventoried roads and all trails. The actual Fiscal Year the recommended
action was implemented on a road.
Attribute Domain Values:
Unrepresentable Domain: 4-Character Year Field
Attribute:
Attribute Label: Tmo_pln_cl
Attribute Definition:
Planned Closure Program Year : Required for roads if
closure is designated in TMO Recommended Action. Not applicable to non- inventoried
roads and all trails. The predicted Fiscal Year of the TMO planned closure.
Attribute Domain Values:
Unrepresentable Domain: 4-Character Year Field
Attribute:
Attribute Label: Tmo_rcmd_a
Attribute Definition:
TMO Recommended Action : Recommended data for BLM
inventoried Roads. Not applicable to non-inventoried roads and all trails. Records
the Transportation Management Objective (TMO) for the route segment. If there
is no recommendation, fill the field with ""NULL"".
Attribute:
Attribute Label: Tmo_rcmd_y
Attribute Definition:
TMO Recommendation Year : Required for all BLM roads when
TMO Recommended Action is not NULL. Not applicable to non-inventoried roads
and all trails. Fiscal year TMO is completed and signed.
Attribute Domain Values:
Unrepresentable Domain: 4-Character Year Field
Attribute:
Attribute Label: Tmo_rsn
Attribute Definition:
Reason for TMO Action : Required for all BLM roads when TMO
Recommended Action is not NULL. Not applicable to non-inventoried roads
and all trails. Records the reason for a Transportation Management Objective
action.
Attribute Definition Source: BLM
Attribute:
Attribute Label: Tnode#
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Tnode_
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Trail_use
Attribute Definition:
Trail Predominant Use: Required for all BLM trails.
Optional for NonInventoried (NIO) trails. Records the administratively
designated use of a trail.
Attribute Definition Source: BLM
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: Bureau of Land Management, Coos Bay District
Contact Person: Lisa Blackburn
Contact Position: State Records Administrator
Contact Address:
Address Type: mailing and physical address
Address: P.O. Box 2965
City: Portland
State or Province: Oregon
Postal Code: 97208
Country: USA
Contact Voice Telephone: 503-952-6276
Distribution Liability: No warranty is made by the Bureau of Land Management as to the accuracy, reliability, or completeness of these data for individual use or aggregate use with other data.
Custom Order Process: Contact Distributor
Available Time Period:
Time Period Information:
Single Date/Time:
Calendar Date: 1990
Time of Day: Unknown
Metadata Reference Information
Section Index
Metadata Date:
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: Oregon Ocean Coastal Management Program
Contact Person: Coastal GIS Coordinator
Contact Position: Coastal GIS Coordinator
Contact Address:
Address Type: mailing address
Address: 800 NE Oregon St #18
City: Portland
State or Province: OR
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x31
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: randy.dana@state.or.us
SMMS Metadata report generated 3/27/2002
