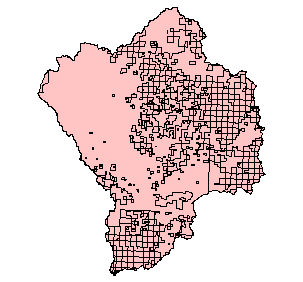

Land Ownership for the Coquille Basin (1:100,000)
.gif)
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: Oregon State Service Center for GIS
Publication Date: 1993
Title: Land Ownership for the Coquille Basin (1:100,000)
Edition: 1993
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Salem, Oregon
Publisher: Oregon State Service Center for GIS
Online Linkage: http://www.sscgis.state.or.us/datadocs/k100.html
Description:
Abstract:
The ownership layer for Oregon was compilied in digital format by The State Service Center for GIS in 1992 and 1993. SSC/GIS received from the BLM the map seperates of the ownership layer from the Surface Management Status map series. The SSC/GIS scanned and vectorized the map seperates into Arc/Info format. The digital linework was then merged into the SSC/GIS digtial public land survey GIS layer. The new set of polygons was cleaned up and attributed with a number in the database field ""OWNER"" to represent specific categories of ownership. Once the polygon topology was
established and the polygon attribution was completed, the public land survey section lines were dissolved out of the
ownership layer. Each 1:100000 scale map sheet was completed and QA/QC as an individual map sheet. When all
the sheets of Oregon were finished, they were merged into one statewide layer. This involved edgematching each map
sheet together to and dissolving their common borders
Purpose: This data was compiled for use in a Geographic Information System
Supplemental Information:
The map seperates for the ownership layer from the BLM Surface Management Status maps were scanned and vectorized
in Arc/Info format GIS data. This digital linework was merged with a digital Public Land Survey GIS lay and then each polygon was attributed with the proper ownership code. The PLS section lines were dissolved away based on the
ownership code. Each quadsheet was then QA/QC for correct polygon attributions. The final step involved edgematching
the individual quadsheets into one statewide layer and dissolving away the quadsheet boundaries.
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1992
Beginning Time: Unknown
Ending Date: 1993
Ending Time: Unknown
Status:
Progress: Complete
Maintenance and Update Frequency: Unknown
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -121.0118
East Bounding Coordinate: -120.2139
North Bounding Coordinate: 43.4103
South Bounding Coordinate: 42.7217
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Land Ownership
Place:
Place Keyword Thesaurus: None
Place Keyword: Coquille
Place Keyword: Oregon
Access Constraints: None
Use Constraints: The data has mixed vintages due to availability of printed map data. The data ranges in age from 1974 to 1984.
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: Oregon State Service Center for GIS
Contact Person: Steve Barnett
Contact Position: GIS Data Librarian
Contact Address:
Address Type: mailing and physical address
Address: 155 Cottage St NE
City: Salem
State or Province: Oregon
Postal Code: 97310
Country: USA
Contact Voice Telephone: (503) 378-2166
Contact Electronic Mail Address: data@sscgis.state.or.us
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report: See Data Set Description Section
Logical Consistency Report: Polygon topology present.
Completeness Report: See Data Set Description Section
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: None
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: NA
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: Oregon State Service Center for GIS
Publication Date: 1993
Title: Land Ownership for the Coquille Basin (1:100,000)
Edition: 1993
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Salem, Oregon
Publisher: Oregon State Service Center for GIS
Online Linkage: http://www.sscgis.state.or.us/datadocs/k100.html
Source Scale Denominator: 100000
Type of Source Media: Mylar
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1974
Beginning Time: Unknown
Ending Date: 1984
Ending Time: Unknown
Source Currentness Reference: 1993
Source Contribution:
The map seperates for the ownership layer from the BLM Surface Management Status maps were scanned and vectorized
in Arc/Info format GIS data. This digital linework was merged with a digital Public Land Survey GIS lay and then each polygon was attributed with the proper ownership code. The PLS section lines were dissolved away based on the ownership code. Each quadsheet was then QA/QC for correct polygon attributions. The final step involved edgematching the individual quadsheets into one statewide layer and dissolving away the quadsheet boundaries.
Process Step:
Process Description:
The Basin coverage was clipped from the larger SSCGIS Ownership coverage . The ownership layer for Oregon was compilied in digital format by TheState Service Center for GIS in 1992 and 1993. SSC/GIS received from the BLM the map seperates of the ownership layer from the Surface Management Status map series. The SSC/GIS scanned and vectorized the map seperates into Arc/Info format. The digital linework was then merged into the SSC/GIS digtial public land survey GIS
layer. The new set of polygons was cleaned up and attributed with a number in the database field ""OWNER"" to represent specific categories of ownership. Once the polygon topology was established and the polygon attribution was completed, the public land survey section lines were dissolved out of the ownership layer. Each 1:100000 scale map sheet was completed and QA/QC as an individual map sheet. When all the sheets of Oregon were finished, they were merged into one statewide layer. This involved edgematching each map sheet together to and dissolving their common borders
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 591
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: own100_c.pat
Entity Type Definition: Polygon Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: County_fip
Attribute Definition: COUNTY_FIPS CODE
Attribute Domain Values:
Unrepresentable Domain: Character Field
Attribute:
Attribute Label: County_nam
Attribute Domain Values:
Unrepresentable Domain: Character Field
Attribute:
Attribute Label: Last_rev_a
Attribute Definition: LAST_REV_AGENCY
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: SSC/GIS
Attribute:
Attribute Label: Last_versi
Attribute Domain Values:
Unrepresentable Domain: Character Field
Attribute:
Attribute Label: Org_compil
Attribute Definition: ORG_COMPILING_AG
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: SSC/GIS
Attribute:
Attribute Label: Org_date_c
Attribute Definition: ORG_DATE_COMPILE
Attribute Domain Values:
Unrepresentable Domain: Date Field
Attribute:
Attribute Label: Own100_c#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Own100_c-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Own100_cc_
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 18
Range Domain Maximum: 706
Attribute:
Attribute Label: Owner_code
Attribute Definition: Numeric code for ownership category
Attribute Definition Source: Created by SSCGIS
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 9999
Attribute:
Attribute Label: Owner_name
Attribute Domain Values:
Unrepresentable Domain: Character Field
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Source_age
Attribute Definition: SOURCE AGENCY
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: BLM
Overview Description:
Entity and Attribute Overview:
The database field ""OWNER"" is a numeric field that holds the information about the particular agency responsible for
the land. The ownership codes:
1 = Bureau of Land Management
2 = Oregon and California Lands administered by the BLM
3 = US Forest Service
4 = Oregon And California Lands administered by the USFS
5 = State of Oregon
6 = Unused Code
7 = Military or Army Corp. of Engineers
8 = Bankhead and Jones Land Use Lands
9 = Indian Reservations
10 = County Lands
11 = National Grasslands
12 = National Parks and Monuments
13 = National Wildlife Refuges
9999 = Private/Non-Governmental Lands
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: Oregon State Service Center for GIS
Contact Person: Steve Barnett
Contact Position: GIS Data Librarian
Contact Address:
Address Type: mailing and physical address
Address: 155 Cottage St NE
City: Salem
State or Province: Oregon
Postal Code: 97310
Country: USA
Contact Voice Telephone: (503) 378-2166
Contact Electronic Mail Address: data@sscgis.state.or.us
Resource Description: owner coverage
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE
PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.
Custom Order Process: download at http://www.sscgis.state.or.us/
Available Time Period:
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
SMMS Metadata report generated 3/27/2002
