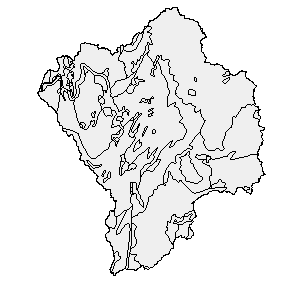

Geology in the Coquille River Basin (1:500,000)
.gif)
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator:
G.W. Walker, N.S. Macleod, H. Casler, United States
Geological Survey,
Publication Date: 1991
Title: Geology in the Coquille River Basin (1:500,000)
Geospatial Data Presentation Form: Map
Other Citation Details:
The map was originally compiled on 1:400,000-scale quarters
of the early 1980's version of the Oregon base map for
publication at 1:500,000. These data were digitized by USGS NMD Thematic
Map Unit and then reprojected to the new (late 1980's) Oregon
1:500,000-scale state base map.
Description:
Abstract: USGS 1:500,000 Geology for Oregon.
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1991
Beginning Time: Unknown
Ending Date: 1993
Ending Time: Unknown
Currentness Reference: 1993
Status:
Progress: Complete
Maintenance and Update Frequency: Unknown
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -121.0126
East Bounding Coordinate: -120.2139
North Bounding Coordinate: 43.4103
South Bounding Coordinate: 42.7217
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Geology
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Access Constraints: None
Use Constraints: None
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: National Mapping Division, Western Mapping Center, USGS
Contact Person: Harry Casler, Gary Raines
Contact Position: Great Basin Mineral Assessment / NAMRAP
Contact Address:
Address Type: mailing and physical address
Address: Reno Field Office, WMR/USGS
City: Reno
State or Province: NV
Country: USA
Contact Voice Telephone: 702-784-5591
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report:
The following attribute corrections have been performed on this coverage:
Date: Winter, 1992 Name: Gary Raines Description of update: Roger Ashley and others familiar with the geology checked a proof print and found half a dozen errors on the printed version that were incorporated.
These occurred primarily in western and northeastern Oregon. Comments: None Date: August 26, 1993 Name: Gary Raines
Description of update: From Marshall Gannett (USGS WRD), 5 polygons in the Willamette drainage basin were mislabeled.
Polygon #1137 was Qpl and is changed to Qal. Polygon #5427 was Qpl and is changed to Tfee. Polygon #3582 was Pzs and is changed to OW (open water) for Marion Lake. These two were mislabeled on published map. Polygon #4186 was Tsfj and is changed to Tut. Polygon #2772 was KJg and is changed to QTa. This polygon was properly labeled on printed map. Comments: The mistaged KJg might occur elsewhere. It is not clear to me how this error occurred.
Logical Consistency Report:
The data are assumed to be logically consistent. No
extensive tests were performed.
Completeness Report: NA
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: NA
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: NA
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: USGS NMD Thematic Map Unit
Title: Oregon Geology Base Map Quarters, 1:400,000
Edition: Early 1980's
Geospatial Data Presentation Form: map
Publication Information:
Publication Place: Reno, NV
Publisher: USGS NMD Thematic Map Unit
Type of Source Media: Mylar
Source Time Period of Content:
Time Period Information:
Source Currentness Reference: 1991
Source Contribution:
The map was originally compiled on 1:400,000-scale quarters of the early 1980's version of the Oregon base map for publication at 1:500,000. These data were digitized by USGS NMD Thematic Map Unit and then reprojected to the new (late 1980's) Oregon 1:500,000-scale state base map.
Process Step:
Process Description:
The map was originally compiled on 1:400,000-scale quarters of the early 1980's version of the Oregon base map for publication at 1:500,000. These data were digitized by USGS NMD Thematic Map Unit and then reprojected to the new (late 1980's) Oregon 1:500,000-scale state base map. This digital work was done primarily in the Scitex sytem. Conversion of
scitex products for publication to ARC/INFO format was done to create this coverage. The major task in this conversion
was translation of the Scitex color parameters to the map unit names used in ARC/INFO.
Process Date: 1991
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 95
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: geology.pat
Entity Type Definition: Polygon Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Geology#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Geology-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Geology_
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Geology_id
Attribute Definition: User Assigned unit ID
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 13988
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Ptype
Attribute Definition:
Formation symbol, age, and lithology for the Oregon
geologic map.
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: Js
Enumerated Domain Value Definition: Jurassic, Sedimentary Rocks
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Ju
Enumerated Domain Value Definition: Jurassic, Ultramafic
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Jv
Enumerated Domain Value Definition: Jurassic, Volcanic
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: KJds
Enumerated Domain Value Definition: Cretaceous, Sedimentary
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: KJm
Enumerated Domain Value Definition: Cretaceous, Myrtle Group
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Ks
Enumerated Domain Value Definition: Cretaceous, Sedimentary
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: OW
Enumerated Domain Value Definition: Open Water
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Qal
Enumerated Domain Value Definition: Holocene, Alluvial
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Qd
Enumerated Domain Value Definition: Holocene, Dune
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Qls
Enumerated Domain Value Definition: Holocene, Landslide
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Qt
Enumerated Domain Value Definition: Holocene, Terrace
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Tmsc
Enumerated Domain Value Definition: Marine, Siltstone/sandstone/conglomerate
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Tmsm
Enumerated Domain Value Definition: Marine, sandstone/siltstone/mudstone
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Tmss
Enumerated Domain Value Definition: Marine, Sandstone/Siltstone
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Tsr
Enumerated Domain Value Definition: Siletz River Volcanic
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Tss
Enumerated Domain Value Definition: Tuffaceous, siltstone/sandstone
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Enumerated Domain Value: Tt
Enumerated Domain Value Definition: Tyee
Enumerated Domain Value Definition Source: http://www.sscgis.state.or.us/pub/data/statewide/k500/orgeol.txt
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Resource Description: Geology for the Coquille Basin
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE
PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.
Available Time Period:
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date: 1/1/2000
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
