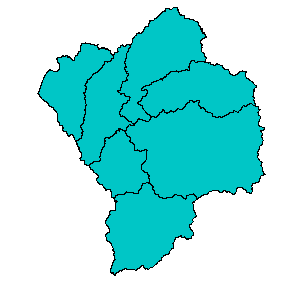

Fifth Field Watersheds for the Coquille Basin

Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: Regional Ecosystem Office, USFS
Publication Date: 19960121
Title: Fifth Field Watersheds for the Coquille Basin
Edition: 1996
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Portland, Oregon
Publisher: Regional Ecosystem Office, USFS
Online Linkage: http://www.reo.gov
Larger Work Citation:
Citation Information:
Originator: Southwest Oregon Province, Regional Ecosystem Office, USFS
Publication Date: 200003
Title: Coos/Coquille Assessment Unit GIS CD-ROM
Online Linkage: www.reo.gov
Description:
Abstract:
This theme contains polygons of 5th field watersheds in Oregon. For the first time a consistent, wall-to-wall set of watersheds (5th field) which nest within established USGS mapping of hydrologic units (4th field) exists for all of Oregon. The attributes for this theme are listed in the Entity/Attribute Section but generally include the USGS number and names for each field (1st field through 5th field) for each mapped polygon.
Purpose:
The theme was created to support land management planning and information sharing on federal and private lands in
Oregon. A consistent set of 5th field watersheds will facilitate and standardize activity information reporting and allow for standardized means to quantify effects of land management activities.
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date:
Beginning Time: Unknown
Ending Date: Unknown
Ending Time: Unknown
Currentness Reference: This is the first draft of the watershed theme. A revision to this theme will be completed by October 1, 1996 to correct errors in linework and attribute information.
Status:
Progress: In work
Maintenance and Update Frequency: Irregular
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -121.0137
East Bounding Coordinate: -120.215
North Bounding Coordinate: 43.4102
South Bounding Coordinate: 42.7218
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Estuary
Theme Keyword: Planning
Theme Keyword: Hydrology
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Access Constraints: This watershed theme is discretionary; contains no sensitive information.
Use Constraints: None, see disclaimer
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: Regional Ecosystem Office
Contact Person: Chris Hamilton (Data Steward)
Contact Position: GIS Administrator
Contact Address:
Address Type: mailing and physical address
Address: 333 SW 1st, P.O. Box 3623
City: Portland
State or Province: Oregon
Postal Code: 97208
Country: USA
Contact Voice Telephone: (503) 326-7133
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report:
The attributes for 1st field through 4th field polygons are from the USGS mapping of hydrologic units. They have been tested by manually comparing the USGS theme to this watershed theme. Fifth field watershed numbering follows USGS conventions by adding a numeric two character code to the 4th field coding. This draft release does not have the
watershed name field populated.
Logical Consistency Report:
All polygons close. No duplicate features exist in the theme. The southern boundary of the theme edgeties to the California Department of Forestry CALWATER GIS theme. The east boundary edgeties to the Interior Columbia Basin Ecosystem Management Project watersheds which were captured at 1:100,000 scale
Completeness Report:
All 5th field watersheds have been mapped throughout Oregon. This theme used existing 1:24,000 mapping by Forest Service and BLM where possible. In areas where no federal lands exist ( ie: Willamette Valley and the Northwest portion of Oregon), watershed boundaries were digitized from USGS 1:24,000 quad sheets.
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report:
Delineation of watershed boundaries were manuscripted from 1:24,000 USGS map series. Fifth field watersheds nest within USGS 4th code hydrological units. Polygons for 5th fields generally range from 50k to 200k acres. Existing digital data from National Forests and BLM Districts were tested to ensure that mapping protocols were met and hard copy plots were visually compared with USGS 7.5' maps
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: National Forests, and Bureau of Land Management
Publication Date: Various
Title: Various existing 1;24,000 watershed coverages
Edition: Various
Geospatial Data Presentation Form: map
Publication Information:
Publication Place: Various
Publisher: Various
Other Citation Details:
Existing 1;24,000 watershed coverages from the following National Forests and Bureau of Land Management Districts were used to construct the parent coverage of this theme. National Forest coverages: Mount Hood NF, Siuslaw NF, Willamette NF, Siskiyou NF, Umpqua NF, Rogue River NF, Winema NF, Fremont NF. Bureau of Land Mgmt: Salem , Eugene, Coos Bay , Roseburg, Medford, Klamath Falls RA
Online Linkage: NA
Source Scale Denominator: 24000
Type of Source Media: paper maps, and existing digital maps
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Time: Unknown
Ending Date: 10/1995
Ending Time: Unknown
Process Step:
Process Description:
Existing digital watershed coverages were reviewed and corrected if necessary by an interagency team of hydrologists and gis specialists. Areas without digital water-shed information were drawn and manually digitized from contour data on USGS 7.5' paper topographic quadrangle maps. Each digital quad was then checked for position by comparing plots of the data to the source material. Digital files were edgetied and merged into the theme. Number code attributes were assigned using USGS hydrologic code information.
Process Date: 199510
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 7
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: orwater.pat
Entity Type Definition: Polygon Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Basin
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 171003
Attribute:
Attribute Label: Basin_name
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: SOUTHERN OREGON COASTAL
Attribute:
Attribute Label: Fifth_fiel
Attribute Definition: Last 2 characters of watershed
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 01
Enumerated Domain Value: 02
Enumerated Domain Value: 03
Enumerated Domain Value: 04
Enumerated Domain Value: 05
Enumerated Domain Value: 06
Enumerated Domain Value: 07
Attribute:
Attribute Label: First_fiel
Attribute Definition: Region Number
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 17
Attribute:
Attribute Label: Fourth_fie
Attribute Definition: Last 2 Characters of sub-basin
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 05
Attribute:
Attribute Label: Orwater#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Orwater-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Orwater_u_
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 6
Range Domain Maximum: 12
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Region
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 17
Attribute:
Attribute Label: Region_nam
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: PACIFIC NORTHWEST
Attribute:
Attribute Label: Rings_nok
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 0
Attribute:
Attribute Label: Rings_ok
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 1
Attribute:
Attribute Label: Second_fie
Attribute Definition: Last 2 Characters of subregion
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 10
Attribute:
Attribute Label: Subbasin
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 17100305
Attribute:
Attribute Label: Subbasin_n
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: COQUILLE
Attribute:
Attribute Label: Subregion
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 1710
Attribute:
Attribute Label: Subregion_
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: OREGON-WASHINGTON COASTAL
Attribute:
Attribute Label: Third_fiel
Attribute Definition: Last 2 Characters of Basin
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 03
Attribute:
Attribute Label: Type_
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 5
Range Domain Maximum: 11
Attribute:
Attribute Label: Type_id
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 5
Range Domain Maximum: 11
Attribute:
Attribute Label: Watershed
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: 1710030501
Enumerated Domain Value: 1710030502
Enumerated Domain Value: 1710030503
Enumerated Domain Value: 1710030504
Enumerated Domain Value: 1710030505
Enumerated Domain Value: 1710030506
Enumerated Domain Value: 1710030507
Attribute:
Attribute Label: Watershed_
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: EAST FORK COQUILLE
Enumerated Domain Value: LOWER COQUILLE
Enumerated Domain Value: MIDDLE FORK COQUILLE
Enumerated Domain Value: MIDDLE MAIN COQUILLE
Enumerated Domain Value: NORTH_FORK COQUILLE
Enumerated Domain Value: SOUTH FORK COQUILLE
Enumerated Domain Value: SOUTH FORK COQUILLE RIVER
Overview Description:
Entity and Attribute Overview: No Attribute information was provided from by SWOP. original metadata referenced at http://www.blm.gov/gis/fsd/metadata/hydro.html
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: Regional Ecosystem Office
Contact Person: Chris Hamilton (Data Steward)
Contact Position: GIS Administrator
Contact Address:
Address Type: mailing and physical address
Address: 333 SW 1st, P.O. Box 3623
City: Portland
State or Province: Oregon
Postal Code: 97208
Country: USA
Contact Voice Telephone: (503) 326-7133
Distribution Liability:
The Regional Ecosystem Office cannot ensure the reliability or suitability of this information for a particular
purpose. Original data was compiled from various sources. Spatial information may not meet National Map Accuracy
Standards. This information may be updated, corrected, or otherwise modified without notfication.
Custom Order Process: Download at http://www.reo.gov
Available Time Period:
Time Period Information:
Single Date/Time:
Calendar Date: 1990
Time of Day: Unknown
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
SMMS Metadata report generated 3/27/2002
