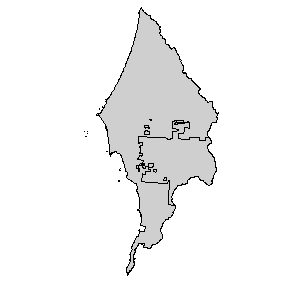

Federal Land in the Sixes Watershed, USGS, 1997
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: U.S. Geological Survey
Publication Date: 1997
Title: Federal Land in the Sixes Watershed, USGS, 1997
Edition: 1997
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Reston, Virginia
Publisher: U.S. Geological Survey
Description:
Abstract:
This data set is an ARC/INFO shapefile that portrays the
federally owned land polygon features of the United States.
The data set was created by extracting federal land polygon
features from the individual 1:2,000,000-scale state
boundary DLG files produced by the U.S. Geological Survey.
These files were then paneled into a single coverage
Purpose:
These data were created to serve as a layer for the
National Atlas of the United States of America
Supplemental Information:
Revisions: 1) 3/22/98 - Corrected topological problems
along state lines, corrected coding errors (Lake Tahoe),
and added Escalante national monument. State attribute
codes were removed. Fort Frederica, GA was deleted because
it was below the minimum mapping area of 640 acres. 2)
6/17/98 - Corrected URL for Glacier National Park. 3)
6/29/98 - Corrected ellipsoid name from WGS84 to GRS1980
and changed flattening ratio
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1972
Beginning Time: Unknown
Ending Date: 1998
Ending Time: Unknown
Currentness Reference: publication date
Status:
Progress: Complete
Maintenance and Update Frequency: Irregular
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -124.703537
East Bounding Coordinate: -124.134727
North Bounding Coordinate: 43.122093
South Bounding Coordinate: 42.415104
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: federal lands
Theme Keyword: polygon
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Sixes
Access Constraints: none
Use Constraints:
None. Acknowledgment of the National Atlas of the United
States of America would be appreciated in products derived
from these data
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: U.S. Geological Survey
Contact Person: Steve Kambly
Contact Position: Unknown
Contact Address:
Address Type: mailing and physical address
Address: 561 National Center
City: Reston
State or Province: VA
Postal Code: 20192
Country: USA
Contact Voice Telephone: 703-648-5094
Contact Facsimile Telephone: NA
Contact Electronic Mail Address: skambly@usgs.gov
Hours of Service: NA
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report:
Accuracy at the DLG level was tested by one or more of the
following methods: - manual comparison of the source with
hard copy plots. - symbolized display of the digital line
graph on an interactive computer graphic system. - Selected
attributes that could not be visually verified on plots or
on screen were interactively queried and verified on
screen. As the DLG files were directly converted to
ARC/INFO coverages, attributes have not been checked in the
ARC/INFO format
Logical Consistency Report:
Using ESRI's ARC/INFO GIS software, the data set was
checked for label errors, dangling nodes, and
intersections. Polygon topology was built for the data set
using the ""BUILD"" command
Completeness Report:
Data completeness generally reflects the content of the
original DLG file.
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report:
In DLG format, files underwent comparison to a graphic
source or image source that was used as control to assess digital
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: NA
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: U.S. Geological Survey
Publication Date: 1995
Title: 1:2,000,000-scale Digital Line Graph Data
Edition: 1995
Geospatial Data Presentation Form: map
Publication Information:
Publication Place: Reston, VA
Publisher: U.S. Geological Survey
Source Scale Denominator: 2000000
Type of Source Media: CD-ROM
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1970
Beginning Time: Unknown
Ending Date: 1995
Ending Time: Unknown
Source Currentness Reference: publication date
Source Citation Abbreviation: nn2milbd.do where nn = state abbreviation
Source Contribution: Spatial and attribute information
Process Step:
Process Description:
This file was originally digitized by the National Mapping
Division based on the sectional maps contained in 'The
National Atlas of the United States of America' published
by the USGS in 1970. The sectional maps were updated during
1978-1981 and digitized in the early 1980's. The data were
updated in 1995 using 1:1,000,000-scale and
1:2,000,000-scale BLM state base maps. These data were
published on CD-ROM in 1995. Using ARC/INFO software, the
DLG optional format files were converted to ARC/INFO
coverages using the DLGARC command. Only federal land
polygons and attribute information were extracted for
inclusion. The sections were then paneled together using
the ARC/INFO command APPEND. ""Slivers"" created during the
append process were identified and deleted using the
ELIMINATE command. The attribute AGBUR was added for
plotting purposed. The codes used are: BIA (Bureau of
Indian Affairs), BOR (Bureau of Reclamation), BLM (Bureau
of Land Management), DOD (Dept. of Defense), FS (Forest
Service), FWS (Fish and Wildlife Service), NPS (National
Park Service), TVA (Tennessee Valley Authority), and OTHER.
In 1998, topological errors introduced when the state files
were paneled were corrected. Grand Staircase-Escalante
National Monument was added. Coding of Lake Tahoe was
corrected, and Fort Frederica, GA was deleted because it
was smaller than the minimum area of 640 acres. The data
were converted to shapefile format for use in National
Atlas applications and for distribution to the public
Source Used Citation Abbreviation: nn2milbd.do where nn = state abbreviation
Process Date: 1997
Process Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: U.S. Geological Survey
Contact Person: Bruce Wright
Contact Position: Unknown
Contact Address:
Address Type: mailing and physical address
Address: 521 National Center
City: Reston
State or Province: VA
Postal Code: 20192
Country: USA
Contact Voice Telephone: 703-648-4528
Contact Facsimile Telephone: NA
Contact Electronic Mail Address: bwright@usgs.gov
Hours of Service: NA
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 2994
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0.001
Ordinate Resolution: 0.001
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: or_fed.pat
Entity Type Definition: Polygon Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Agency_cd
Attribute Definition: Primary name of the federal land feature
Attribute Definition Source: US GeoData Data Users Guide 3
Attribute Domain Values:
Codeset Domain:
Codeset Name: Boundary layer attribute codes
Codeset Source: US GeoData Data Users Guide 3
Attribute:
Attribute Label: Agency_nm
Attribute Definition: Secondary name of the federal land feature
Attribute Definition Source: US GeoData Data Users Guide 3
Attribute Domain Values:
Codeset Domain:
Codeset Name: Boundary layer attribute codes
Codeset Source: US GeoData Data Users Guide 3
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Fs_lands_
Attribute Definition: unknown
Attribute Definition Source: unknown
Attribute Domain Values:
Unrepresentable Domain:
unknown, attribute information was incomplete, interpret at
your own risk.
Attribute:
Attribute Label: Fs_lands_i
Attribute Definition: Agency code
Attribute Definition Source: none
Attribute Domain Values:
Codeset Domain:
Codeset Name: Agency/Bureau codes
Codeset Source: none (See Process_Description)
Attribute:
Attribute Label: Or_fed#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Or_fed-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Own
Attribute Definition: 2-digit state FIPS code
Attribute Definition Source: FIPS PUB 5-2
Attribute Domain Values:
Codeset Domain:
Codeset Name:
Codes for the identification of the States, the District of
Columbia and the outlying areas of the United States, and
associated areas
Codeset Source: FIPS PUB 5-2
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: U.S. Geological Survey
Contact Person: Bruce Wright
Contact Position: Unknown
Contact Address:
Address Type: mailing and physical address
Address: 521 National Center
City: Reston
State or Province: VA
Postal Code: 20192
Country: USA
Contact Voice Telephone: 703-648-4528
Contact Facsimile Telephone: NA
Contact Electronic Mail Address: bwright@usgs.gov
Hours of Service: NA
Resource Description: Federal Land in the Sixes Watershed
Distribution Liability:
Ecotrust makes no express or implied warrantees with
respect to the character, fitness, or accuracy of the
information presented, or their appropriateness for any
users purposes
Metadata Reference Information
Section Index
Metadata Date: 3/21/2003
Metadata Review Date: 3/21/2003
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: O.S.U. Geosciences Department
Contact Person: Lisa Reiley
Contact Position: Metadata Intern
Contact Address:
Address Type: Mailing and physical address
Address: 104 Wilkinson Hall, Oregon State University
City: Corvallis
State or Province: OR.
Postal Code: 97330.
Country: U.S.A.
Contact Voice Telephone: (541) 737-1201
Contact Facsimile Telephone: (541) 737-1200
Contact Electronic Mail Address: geo-oss@geo.orst.edu / wrightd@geo.orst.edu
Hours of Service: 8:00 a.m. to 5 p.m., Mon. - Fri.
Metadata Standard Name: F.G.D.C. Content Standard for Digital Geospatial Metadata (C.S.D.G.M.)
Metadata Standard Version: FGDC-STD-001-1998
SMMS Metadata report generated 6/13/2005
