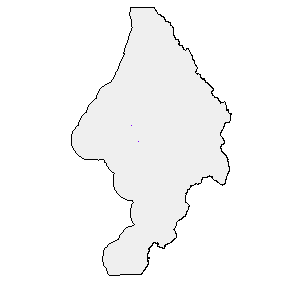

Dams in the Sixes Watershed, OWRD, 1998

Citation:

Citation Information:

Originator: John Falk & Robert Harmon
Publication Date: 19980520
Title: Dams in the Sixes Watershed, OWRD, 1998
Edition: 98.1
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Salem, OR
Publisher: Oregon Water Resources Department

Other Citation Details: data is related to National Dams Inventory database
Online Linkage: http://www.wrd.state.or.us/

Description:

Abstract: Oregon Dams
Purpose:
Depict the approximate location of dams in the state of Oregon that the State has statutory authority over. These are dams
that are greater than or equal to 10-feet in height and store
greater than or equal to 9.2-acre-feet of water behind them.

Supplemental Information:
Dams are located by John Falk to the nearest second of latitude and longitude on USGS 1:24,000-scale quad maps. This information is
stored in a format compatible with the National Dams Inventory database
structure. Bob Harmon geo-coded the dam locations from a copy of Johns
database in ArcView 3.0a and translated the locations into
a shapefile. The shapefile was converted into an ARC/INFO coverage and projected into
the Oregon State Lambert Projection in ARC.

Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 1998
Beginning Time: Unknown
Ending Date: 1998
Ending Time: Unknown

Currentness Reference: 1998

Status:

Progress: Complete
Maintenance and Update Frequency: Annually

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.703537
East Bounding Coordinate: -124.134727
North Bounding Coordinate: 43.122093
South Bounding Coordinate: 42.415104

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: dams

Place:

Place Keyword Thesaurus: None
Place Keyword: Oregon

Access Constraints: None
Use Constraints: None
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Water Resources Department
Contact Person: Jerry Sauter

Contact Position: Senior GIS Analyst
Contact Address:

Address Type: mailing and physical address
Address: 158 12th Street NE
City: Salem
State or Province: Oregon
Postal Code: 97310-0210
Country: US

Contact Voice Telephone: (503) 378-8455 x270
Contact Facsimile Telephone: (503) 378-2496
Contact Electronic Mail Address: jerry.k.sauter@wrd.state.or.us
Hours of Service: 8:00 AM to 5:00 PM PT

Native Data Set Environment: Arc/Info coverage format

Attribute Accuracy:

Attribute Accuracy Report: NA

Logical Consistency Report: Point features present.
Completeness Report: Complete
Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report: +/- 200-ft.

Vertical Positional Accuracy:

Vertical Positional Accuracy Report: n/a

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: John Falk,Robert Harmon
Publication Date: 19980520
Title: Oregon Dams
Edition: 98.1
Geospatial Data Presentation Form: map
Publication Information:

Publication Place: Salem, OR
Publisher: OWRD

Other Citation Details: data is related to National Dams Inventory database
Online Linkage: http://www.wrd.state.or.us/

Source Scale Denominator: 24000
Type of Source Media: Paper
Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: Unknown
Beginning Time: Unknown
Ending Date: 1998
Ending Time: Unknown

Source Currentness Reference: 1998

Source Citation Abbreviation: John Falk Dams database
Source Contribution: lat / long coordinates for dam locations

Process Step:

Process Description: HARMONRC PROJECT COVER STATEDAMGEO DAMS /GISDATA/PROD/STATE/PROJECTION/GEON-ORLA
Source Used Citation Abbreviation: John Falk Dams database
Process Date: 1998052

Cloud Cover: 0

Direct Spatial Reference Method: Point
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: Point
Point and Vector Object Count: 1105

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: or_dams.pat
Entity Type Definition: Point Attribute Table
Entity Type Definition Source: None

Attribute:

Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: County
Attribute Definition: name of the county in which the dam is located
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Dam_height
Attribute Definition: in feet, height of the dam, from the lowest point in original streambed to top
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Numeric Field

Attribute:

Attribute Label: Dam_length
Attribute Definition: in feet, length of the dam (along the top, including any attached structures)
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Numeric Field

Attribute:

Attribute Label: Dam_name
Attribute Definition: name of the dam
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Dam_type
Attribute Definition: code indicating the type of dam
Attribute Definition Source: National Inventory of Dams Methodology
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: RE
Enumerated Domain Value Definition: Earth
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: ER
Enumerated Domain Value Definition: RockFIll
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: PG
Enumerated Domain Value Definition: Gravity
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: CB
Enumerated Domain Value Definition: Buttress
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: VA
Enumerated Domain Value Definition: Arch
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: MV
Enumerated Domain Value Definition: Mutli-Arch
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: CN
Enumerated Domain Value Definition: Concrete
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: MS
Enumerated Domain Value Definition: Masonry
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: ST
Enumerated Domain Value Definition: Stone
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: TC
Enumerated Domain Value Definition: Timber Crib
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: OT
Enumerated Domain Value Definition: Other
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Attribute:

Attribute Label: Draing_are
Attribute Definition: drainage area, in square-miles, behind the dam
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Numeric Field

Attribute:

Attribute Label: Lat
Attribute Definition: latitude location in degrees-decimal notation
Attribute Definition Source: USGS 24K quad map
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 42.0017
Range Domain Maximum: 46.1183

Attribute:

Attribute Label: Long
Attribute Definition:
longitude location in decimal-degrees notation

Attribute Definition Source: USGS 24K quad map
Attribute Domain Values:

Range Domain:

Range Domain Minimum: -124.489
Range Domain Maximum: -116.7

Attribute:

Attribute Label: Max_dischg
Attribute Definition: cubic feet per second (cfs), maximum discharge
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Numeric Field

Attribute:

Attribute Label: Natnl_id
Attribute Definition: national identification number
Attribute Definition Source: US Army Corps identification number from 1981 National Inventory of Dams
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Norml_stor
Attribute Definition: normal storage, in acre-feet, of reservoir
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Numeric Field

Attribute:

Attribute Label: Or_dams#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Or_dams-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: User Defined

Attribute:

Attribute Label: Owner_name
Attribute Definition: name of the owner of the dam
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Owner_type
Attribute Definition: code which indicates the type of owner
Attribute Definition Source: National Inventory of Dams Inventory
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: F
Enumerated Domain Value Definition: Federal
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: S
Enumerated Domain Value Definition: State
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: U
Enumerated Domain Value Definition: Public Utility
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: L
Enumerated Domain Value Definition: Local Government
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: P
Enumerated Domain Value Definition: Private
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Attribute:

Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Purposes
Attribute Definition: purpose for which the reservoir is used
Attribute Definition Source: National Inventory of Dams Inventory
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: I
Enumerated Domain Value Definition: Irrigation
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: H
Enumerated Domain Value Definition: Hydroelectric
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: C
Enumerated Domain Value Definition: Flood Control & Storm Water Management
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: N
Enumerated Domain Value Definition: Navigation
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: S
Enumerated Domain Value Definition: Water Supply
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: R
Enumerated Domain Value Definition: Recreation
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: P
Enumerated Domain Value Definition: Fire Protection, Stock, Or Small Farm Pond;
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: F
Enumerated Domain Value Definition: Fish and Wildlife Pond
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: D
Enumerated Domain Value Definition: Debris Control
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: T
Enumerated Domain Value Definition: Tailings
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Enumerated Domain:

Enumerated Domain Value: O
Enumerated Domain Value Definition: Other
Enumerated Domain Value Definition Source: National Inventory of Dams Data Dictionary

Attribute:

Attribute Label: River
Attribute Definition: name of the river or stream on which the dam is built
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: State_id
Attribute Definition: official state identification number
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Surf_area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: T_r_s
Attribute Definition: township, range, and section location
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Year_compl
Attribute Definition: year when the original main dam structure was completed
Attribute Definition Source: OWRD
Attribute Domain Values:

Unrepresentable Domain: Numeric Field

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Water Resources Department
Contact Person: Jerry Sauter

Contact Position: Senior GIS Analyst
Contact Address:

Address Type: mailing and physical address
Address: 158 12th Street NE
City: Salem
State or Province: Oregon
Postal Code: 97310-0210
Country: US

Contact Voice Telephone: (503) 378-8455 x270
Contact Facsimile Telephone: (503) 378-2496
Contact Electronic Mail Address: jerry.k.sauter@wrd.state.or.us
Hours of Service: 8:00 AM to 5:00 PM PT

Resource Description: Sixes dams
Distribution Liability: no liability is assumed by owrd
Standard Order Process:

Digital Form:

Digital Transfer Information:

Format Name: ARCE ARC/INFO Export format

Digital Transfer Option:

Offline Option:

Offline Media: 8mm
Recording Format: tar

Fees: NA
Ordering Instructions: call or e-mail any member of the OWRD GIS staff

Metadata Date: 5/26/1998
Metadata Review Date: 1/1/2004
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Water Resources Department
Contact Person: Bob Harmon

Contact Position: GIS Coordinator
Contact Address:

Address Type: Mailing and physical address
Address: 158 12th Street NE
City: Salem
State or Province: Oregon
Postal Code: 97310-210
Country: US

Contact Voice Telephone: 503) 378-8455 x258
Contact Facsimile Telephone: 503) 378-2496
Contact Electronic Mail Address: robert.c.harmon@wrd.state.or.us
Hours of Service: 8:00 AM to 5:00 PM PT

Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
