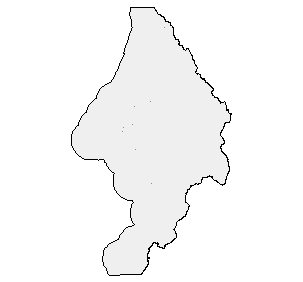

Dams in the Sixes Watershed, ODFW

Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: Susan Brodeur,Jennifer Lloyd,Jon Bowers
Publication Date: 200204
Title: Dams in the Sixes Watershed, ODFW
Edition: 2
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Salem, OR
Publisher: Oregon Department of Fish & Wildlife
Other Citation Details: N/A
Online Linkage: <http://rainbow.dfw.state.or.us/nrimp/information/damdata.htm>
Description:
Abstract:
This dataset contains locations of dams. Dams that are both
passable and impassable to salmonid migration are included. This
dataset includes dams throughout the state of Oregon.
Purpose:
To identify geographic locations of dams that may impede or
block the migration of anadromous salmonids. This data is used to
further refine the anadromous salmonid distribution datasets.
Supplemental Information: N/A
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 2002
Beginning Time: Unknown
Ending Date: 2002
Ending Time: Unknown
Currentness Reference: 2002
Status:
Progress: Complete
Maintenance and Update Frequency: Annually
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -124.703537
East Bounding Coordinate: -124.134727
North Bounding Coordinate: 43.122093
South Bounding Coordinate: 42.415104
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: dams
Theme Keyword: barriers
Theme Keyword: fish passage
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Sixes
Access Constraints: N/A
Use Constraints:
Many dams are likely to be absent from this dataset,
especially smaller ones. Additionally, this dataset
contains dams that are primarily associated with
1:100,000 scale streams. Additionally, data development
efforts have focussed in the anadromous zones of Oregon and less
attention has been paid to developing this data outside those zones.
ODFW will be working to enhance this dataset over time.
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: ODWF
Contact Person: Jon Bowers
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 2501 SW First Ave.
City: Portland
State or Province: OR
Postal Code: 97207
Country: US
Contact Voice Telephone: (503) 872-5255 x5603
Contact Electronic Mail Address: jon.k.bowers@state.or.us
Hours of Service: M-F 8-5
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report: N/A
Logical Consistency Report: point features present
Completeness Report:
This dataset is known to be incomplete, but it is the best
information that is available within ODFW regarding dams data in a GIS format.
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: N/A
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: N/A
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: Susan Brodeur,Jennifer Lloyd,Jon Bowers
Publication Date: 2002
Title: ODFW dams coverage
Edition: 2002
Geospatial Data Presentation Form: map
Publication Information:
Publication Place: Gladstone / Portland
Publisher: StreamNet / ODFW
Other Citation Details: N/A
Online Linkage: http://osu.orst.edu/dept/nrimp/information/fishbarrierdata.htm
Source Scale Denominator: 24000
Type of Source Media: database
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 2002
Beginning Time: Unknown
Ending Date: 2002
Ending Time: Unknown
Source Currentness Reference: 2002
Source Citation Abbreviation: ODFW Dams
Source Contribution: N/A
Process Step:
Process Description: BOWERSJ APPEND BUILD EXPORT DOCUMENT DAM_PTS POINTS FEATURES
Process Date: 20020924 Process Time: 1540
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Point
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: Point
Point and Vector Object Count: 1297
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0.004096
Ordinate Resolution: 0.004096
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: or_dams02.pat
Entity Type Definition: Point Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Dam_id
Attribute Definition:
Unique identifier for each dam - provides link to
fishbarrier table
Attribute Definition Source: Assigned by ODFW
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 50107
Range Domain Maximum: 60360
Attribute:
Attribute Label: Nid_dam_id
Attribute Definition: National Inventory of Dams ID number
Attribute Definition Source: National Inventory of Dams
Attribute Domain Values:
Unrepresentable Domain: Numeric Field
Attribute:
Attribute Label: Nid_no
Attribute Definition: National Inventory of Dams ID number
Attribute Definition Source: National Inventory of Dams
Attribute Domain Values:
Unrepresentable Domain: Character Field
Attribute:
Attribute Label: Or_dams02#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Or_dams02-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Overview Description:
Entity and Attribute Overview: information includes fishway, ownership, and physical characteristics such as length, height, storage, etc.. Fish passage information is stored in a related table
Entity and Attribute Detail Citation: Not Available
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: Oregon Department of Fish & Wildlife
Contact Person: Jon Bowers
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 2501 SW First Ave.
City: Portland
State or Province: OR
Postal Code: 97207
Country: US
Contact Voice Telephone: (503) 872-5255 x5603
Contact Electronic Mail Address: jon.k.bowers@state.or.us
Hours of Service: M-F 8-5
Resource Description: Sixes Dams coverage
Distribution Liability:
Many dams are likely to be absent from this dataset,
especially smaller ones. Additionally, this dataset
contains dams that are primarily associated with
1:100,000 scale streams. Additionally, data development
efforts have focussed in the anadromous zones of Oregon and less
attention has been paid to developing this data outside those zones.
ODFW will be working to enhance this dataset over time.
Custom Order Process: Links to FTP site available on NRIMP Data Resources web page
Metadata Reference Information
Section Index
Metadata Date: 9/26/2002
Metadata Review Date: 1/1/2004
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: ODWF
Contact Person: Jon Bowers
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 2501 SW First Ave.
City: Portland
State or Province: OR
Postal Code: 97207
Country: US
Contact Voice Telephone: (503) 872-5255 x5603
Contact Electronic Mail Address: jon.k.bowers@state.or.us
Hours of Service: M-F 8-5
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
SMMS Metadata report generated 6/10/2005
