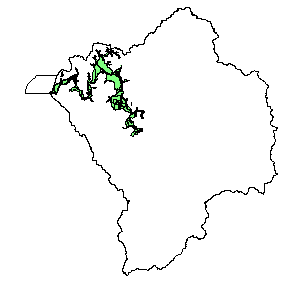

Coquille Estuary Historic Wetlands (1857-1872)
.gif)
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: Patricia Benner
Publication Date: 1998
Title: Coquille Estuary Historic Wetlands (1857-1872)
Edition: NA
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Portland, Oregon
Publisher: Ecotrust
Online Linkage: www.ecotrust.org
Description:
Abstract:
The Historic wetland data was mapped by Patricia Benner, interpreting land survey notes from 1857 - 1872. These data
were collected along public land survey section lines interpolating data in-between. The data was then digitized into Arc/Info using the pls section corners as control points. The coverage was then attributed using base map and items added to identify symbolic relations to NWI data layer. The classifications were matched as best as possible to NWI classifications. NWI data had to be generalized in many cases.
Purpose: To provide a snapshot of the historic extent of wetlands in the Coquille estuary for comparison to modern extents.
Time Period of Content:
Time Period Information:
Currentness Reference: ground condition
Status:
Progress: Complete
Maintenance and Update Frequency: None planned
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -121.0109
East Bounding Coordinate: -120.6808
North Bounding Coordinate: 43.3078
South Bounding Coordinate: 43.0792
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Wetlands
Theme Keyword: Public Land Survey
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Access Constraints: None
Use Constraints: None
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: Ecotrust
Contact Person: Mike Mertens
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 1200 NW Naito Parkway Suite 470
City: Portland
State or Province: Oregon
Postal Code: 97209
Country: USA
Contact Voice Telephone: 503-227-6225
Contact Facsimile Telephone: 503-222-1517
Contact Electronic Mail Address: mapdesk@ecotrust.org
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report:
The coverage was attributed using base map and items added to identify symbolic relations to NWI data layer. The
classifications were matched as best as possible to NWI classifications. NWI data had to be generalized in many cases.
Logical Consistency Report: NA
Completeness Report: Sandy barrens with scattering of Pine, Pine opening and Upland forest were omitted from the original classification, as they were not relevant in relation to the floodplain.
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: NA
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: NA
Lineage:
Source Information:
Source Citation:
Citation Information:
Title: Public Land Survey Section Field Notes
Edition: 1857-1872
Geospatial Data Presentation Form: map
Other Citation Details:
There are nearly 14,000 acres of vegetated wetlands in the Coquille floodplain and over 1,500 acres of deepwater habitat. The extent of vegetated wetlands in the bottomlands of the Coquille in the late 1800's is estimated as high as 25,000 acres although area calculations can not be considered accurate due to inventory methodology of the time. The significance of change over time however, can be observed in the change
in wetland type. While in the late 1800's nearly 70% of all wetlands were considered timbered swamp or wooded bottom lands the Coquille floodplain is currently dominated by emergent grasses or upland prairies (aprox. 90%). Historic and current wetland data were collected using two
different protocols, (as would be expected) making only a general comparison possible. Furthermore, source scale and method of data acquisition varies significantly. Methodology of comparison was carried out as follows. The Historic wetland data was mapped by Patricia Benner,
interpreting land survey notes from 1857 - 1872. These data were collected along public land survey section lines interpolating data in-between. The data was then digitized into Arc/Info using the pls section corners as control points. The coverage was then attributed using base map and items added to identify symbolic relations to NWI data layer. The classifications were matched as best as possible to NWI classifications. NWI data had to be generalized in many cases. The historic wetland data was classified as follows:
Marsh prairie
Timbered swamp with a brushy understory
Timbered swamp with coarse grass understory; Brush; wet and
miry, muck soil and large number of beaver.
Timbered swamp with coarse grass understory; Substantial
standing water and ponds Brush; wet and miry, muck soil and
large number of beaver.
Wooded bottomland, mostly floodplain.
Upland forest
Upland prairie
Sandy barrens with scattering of Pine
Marshy thicket
Flat, tidal land
Pine opening
Good grassland.
Sandy barrens with scattering of Pine, Pine opening and
Upland forest were omitted from the classification, as they
were not relevant in relation to the floodplain.
The above classifications were matched as appropriately as
possible with NWI classification
Source date of NWI aerial photo acquisition was August and
September of 1982. Scale = 1:58,000
Online Linkage: http://www.inforain.org/A_Detail.idc?ID=1043
Source Scale Denominator: 58000
Type of Source Media: Field Notes
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1857
Beginning Time: Unknown
Ending Date: 1872
Ending Time: Unknown
Source Currentness Reference: 1996
Source Citation Abbreviation: PLSS Field Notes
Source Contribution: Historic landscape charaterization notes collected along section lines.
Process Step:
Process Description:
Historic and current wetland data were collected using two different protocols, (as would be expected) making only a
general comparison possible. Furthermore, source scale and method of data acquisition varies significantly.
Methodology of comparison was carried out as follows. The Historic wetland data was mapped by Patricia Benner,
interpreting land survey notes from 1857 - 1872. These data were collected along public land survey section lines
interpolating data in-between. The data was then digitized into Arc/Info using the pls section corners as control
points. The coverage was then attributed using base map and items added to identify symbolic relations to NWI data
layer. The classifications were matched as best as possible to NWI classifications. NWI data had to be generalized in
many cases The NWI data was ""clipped"" to the extent of the original wetland data to facilitate direct overlay and subsequent areal calculations.
Once the two data sets had been standardized overlay processes could be utilized for analytical purposes. Each data set was rasterized (Arc/Info Grid) and each cell (10 meters) was assigned its respective value (according to NWI code). A Boolean calculation was carried out to determine areas of change. Due to the fact that the data sets varied in data acquisition and classification methodology, the results are meant solely as a possible scenario.
Process Date: 1996
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 54
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: hiswetcq.pat
Entity Type Definition: Polygon Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Attribute
Attribute:
Attribute Label: Histwetcq_
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 2
Range Domain Maximum: 55
Attribute:
Attribute Label: Hiswetcq#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Hiswetcq-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Owl_
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 2
Range Domain Maximum: 55
Attribute:
Attribute Label: Owl_id
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 63
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Poly_
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 2
Range Domain Maximum: 55
Attribute:
Attribute Label: Rings_nok
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 0
Attribute:
Attribute Label: Rings_ok
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 4
Attribute:
Attribute Label: Subclass
Attribute Domain Values:
Unrepresentable Domain: Software generated
Attribute:
Attribute Label: Subclass_
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 54
Attribute:
Attribute Label: Sym
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 1
Range Domain Maximum: 206
Attribute:
Attribute Label: Sym2
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 227
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: Ecotrust
Contact Person: Mike Mertens
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 1200 NW Naito Parkway Suite 470
City: Portland
State or Province: Oregon
Postal Code: 97209
Country: USA
Contact Voice Telephone: 503-227-6225
Contact Facsimile Telephone: 503-222-1517
Contact Electronic Mail Address: mapdesk@ecotrust.org
Resource Description: Coquille Historic Wetlands (1857-1872)
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE
PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE
STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK
ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.
Available Time Period:
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date: 1/1/2000
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
