Coquille Basin Streams (1:12,000)

Citation:

Citation Information:

Originator: Coquille Watershed Association
Publication Date: 200003
Title: Coquille Basin Streams (1:12,000)
Edition: 1994
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: North Bend, Oregon
Publisher: Southwest Oregon Province, Regional Ecosystem Office, USFS

Online Linkage: www.reo.gov
Larger Work Citation:

Citation Information:

Originator: Southwest Oregon Province, Regional Ecosystem Office, USFS
Publication Date: 200003
Title: Coos/Coquille Assessment Unit GIS CD-ROM
Online Linkage: www.reo.gov

Description:

Abstract:

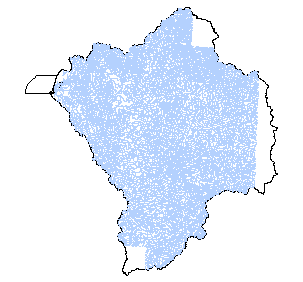

This is a Legacy dataset from the Coquille Watershed Association. As such not much is known about it other than Streams were stereocompiled in 1990 from 1:20,000-scale aerial photography onto 1:12,000-scale base maps and then
digitized. An update was completed in 1994 using GPS files. The coverage does not cover the entire coquille basin.

Purpose: To present a coverage of improved scale for use with the other hydro coverages on the SWOP CD.

Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 1990
Beginning Time: Unknown
Ending Date: 1994
Ending Time: Unknown

Status:

Progress: Complete
Maintenance and Update Frequency: Unknown

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -121.0126
East Bounding Coordinate: -120.2139
North Bounding Coordinate: 43.4103
South Bounding Coordinate: 42.7217

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Streams
Theme Keyword: Rivers
Theme Keyword: Hydrography

Place:

Place Keyword Thesaurus: None
Place Keyword: Coquille
Place Keyword: Oregon

Access Constraints: None
Use Constraints: None
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Coquille Watershed Association
Contact Person: Jennifer Hempel

Contact Position: Watershed Coordinator
Contact Address:

Address Type: mailing and physical address
Address: 382 N. Central st
City: Coquille
State or Province: Oregon
Postal Code: 97423
Country: USA

Contact Voice Telephone: 541-396-2229
Contact Facsimile Telephone: 541-396-3963
Contact Electronic Mail Address: jhampel@transport.com

Native Data Set Environment: Arc/Info coverage format

Attribute Accuracy:

Attribute Accuracy Report: were performed.

Logical Consistency Report: The data are assumed to be logically consistent. No extensive tests were performed.
Completeness Report: The coverage does not cover the entire Coquille basin.
Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report: NA

Vertical Positional Accuracy:

Vertical Positional Accuracy Report: NA

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: Coquille Watershed Association
Publication Date: 200003
Title: Coquille Basin Streams (1:12,000)
Edition: 1994
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: North Bend, Oregon
Publisher: Southwest Oregon Province, Regional Ecosystem Office, USFS

Online Linkage: www.reo.gov
Larger Work Citation:

Citation Information:

Originator: Southwest Oregon Province, Regional Ecosystem Office, USFS
Publication Date: 200003
Title: Coos/Coquille Assessment Unit GIS CD-ROM
Online Linkage: www.reo.gov

Source Scale Denominator: 20000
Type of Source Media: photo
Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 1990
Beginning Time: Unknown
Ending Date: 1994
Ending Time: Unknown

Source Currentness Reference: 2000

Source Citation Abbreviation: Streams-CWA (12k)

Process Step:

Process Description:
The data was recieved fromt he Coquille Watershed Association in ESRI shapefile format. It was converted to an ArcInfo cover and projected into the Oregon Lambert projection. Not much is known about the original process to create the cover other than that streams were stereocompiled in 1990 from 1:20,000-scale aerial photography onto 1:12,000-scale base maps and then digitized. An update was completed in 1994 using GPS files.
Process Date: 1999

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: Complete Chain
Point and Vector Object Count: 18630

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: hyd12.aat
Entity Type Definition: Arc Attribute Table
Entity Type Definition Source: None

Attribute:

Attribute Label: Fnode#
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Hyd12#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Hyd12-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: User Defined

Attribute:

Attribute Label: Id_
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 29
Range Domain Maximum: 30720

Attribute:

Attribute Label: Length
Attribute Definition: Length of line
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Line_
Attribute Definition: Arc ID
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 29
Range Domain Maximum: 25237

Attribute:

Attribute Label: Line_id
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 29
Range Domain Maximum: 30720

Attribute:

Attribute Label: Lpoly#
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Name
Attribute Definition: Name
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Name1_a
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Name1_aa
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Name1_aaa
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Rpoly#
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Streamsgp_
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 29
Range Domain Maximum: 30720

Attribute:

Attribute Label: Tnode#
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: US Forest Service
Contact Person: Anne Boeder/ Jim McGuinnes

Contact Position: GIS Analyst
Contact Address:

Address Type: mailing and physical address
Address: 1300 Airport Way
City: North Bend
State or Province: Oregon
Postal Code: 97459
Country: USA

Resource Description: Streams-CWA (12k)
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: Unknown
Time of Day: Unknown

Metadata Date: 1/1/2000
Metadata Review Date: 1/1/2000
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: Tanya Haddad

Contact Position: DEMIS Coordinator
Contact Address:

Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us

Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
