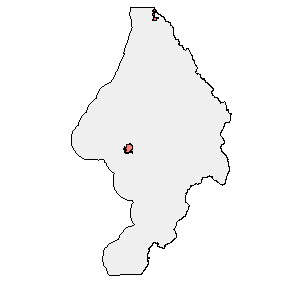

City Limit Boundaries in the Sixes Watershed, ODOT, 2003

Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Description:
Abstract:
This data set combined attributes from the USGS GNIS coverage with
linework showing city limit boundaries in the state of Oregon
Purpose:
This dataset is for determining the general location of city limits
in the state of Oregon. The most precise city limit boundaries are
kept by individual cities. The data is meant to be used with other
1:24000 scale data. The city limit boundaries were created by
ODOT for use with the states road coverages.
Supplemental Information:
Procedures_Used - The original data set was created by digitizing 1:24000 USGS quad
maps. The original dataset is checked against annexation
records in order to maintain an up to date line coverage.
The line coverage which is created in an integraph (dgn) format
by ODOT is coverted into Arc/Info format by the SSCGIS using
the igdsarc command. The linework was combined with data
from the USGS GNIS coverage adding further data to the
coverage.
Revisions - Odot updates the city limits coverage 4 times a year. The
current data layer does not reflect the newest data created
by odot. The SSCGIS will begin updating the coverage
quarterly in the fall of 1997.
Reviews to data Unknown - The current data set was created prior to the
tenure of the current SSCGIS project manager and data
team. An updated version will be completed, checked
and published on the SSCGIS web site in the Fall of 1997.
Related_Spatial_and_Tabular_Data_Sets:
N/A
References_Cited - The data set was created off 1:24,000 scale USGS quad maps.
Updates to the line work are done by the Oregon Dept. of
Transportation quarterly.
20040218 For purposes of Oregon Coastal Atlas project this data was reprojected and clipped to basin boundaries. Please refer to originators for original data and further information regarding this data.
Time Period of Content:
Time Period Information:
Single Date/Time:
Calendar Date: 7/25/1997
Time of Day: Unknown
Currentness Reference:
The current City Limits coverage line work comes from
1996 and the GNIS data comes from 1995.
Status:
Maintenance and Update Frequency:
The coverage is updated infrequently. It is scheduled
to enter regular quarterly updates starting in the fall of 1997.
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -124.703537
East Bounding Coordinate: -124.134727
North Bounding Coordinate: 43.122093
South Bounding Coordinate: 42.415104
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Oregon
Theme Keyword: city limits
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Sixes
Access Constraints: None
Use Constraints:
The data is meant to be used with 1:24000 scale data. It was
hand digitized off 1:24k quad sheets. It is updated by
comparing it with information from the Secretary of States
office in order to incorporate new annexations. The ODOT
coverage is updated quarterly, but this dataset was created
using 1996 data.
Point of Contact:
Contact Information:
Contact Person Primary:
Contact Person: GIS Librarian
Contact Organization: Oregon Department of Transportation
Contact Position: Geographic Information Services Unit
Contact Address:
Address Type: mailing and physical address
Address: Transportation Bldg., Suite 2
City: Salem
State or Province: OR
Postal Code: 97301
Country: USA
Contact Voice Telephone: (503) 986-3154
Contact Electronic Mail Address: odot.maps@odot.state.or.us
Hours of Service: 8 am - 5 pm
Data Set Credit:
The updates to the line work are kept up by the
Oregon Department of Transportation.
Security Information:
Security Classification System: None
Security Classification: Unclassified
Security Handling Description: None
Native Data Set Environment: Microsoft Windows 2000 Version 5.0 (Build 2195) Service Pack 4; ESRI ArcCatalog 8.3.0.800
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report: See E&A Info
Logical Consistency Report: Polygon and chain-node topology present.
Completeness Report: Data is complete for the clipped area
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: N/A
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: N/A
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: United States Geological Survey
Publication Date: 1996
Title: Topographical Quads 1:24000 Scale
Geospatial Data Presentation Form: vector digital data
Other Citation Details: N/A
Source Scale Denominator: 24000
Type of Source Media: mylar overlaid on 1:24,000 "quad-pair" maps
Source Time Period of Content:
Time Period Information:
Single Date/Time:
Calendar Date: 1996
Time of Day: Unknown
Source Currentness Reference: professional judgement
Source Citation Abbreviation: mylars
Source Contribution: ODFW District Fish Biologists as well as biologists from other state, federal and tribal natural resource agencies.
Process Step:
Process Description: ELIMINATE ORCLIMLAB ORCLIMLAB2 KEEPEDGE POLY
Process Date: 19920924
Process Step:
Process Description: SJB DOCUMENT CITYLIM UPDATE SJB
Process Date: 19970801
Process Step:
Process Description: Metadata imported.
Process Date: 20040304
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: Complete chain
Point and Vector Object Count: 652
SDTS Terms Description:
SDTS Point and Vector Object Type: Label point
Point and Vector Object Count: 537
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 537
SDTS Terms Description:
SDTS Point and Vector Object Type: Point
Point and Vector Object Count: 4
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0.002091
Ordinate Resolution: 0.002091
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: or_citylim.aat
Entity Type Definition: City limits for Oregon Cities with name, county name, fips code
Entity Type Definition Source: ODOT, Oregon GNIS Coverage
Attribute:
Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute Label: FNODE#
Attribute Definition: Internal node number for the beginning of an arc (from-node).
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Whole numbers that are automatically generated.
Attribute:
Attribute Label: LAT-DEG
Attribute Definition: Degrees lattitude
Attribute Definition Source: USGS
Attribute Domain Values:
Unrepresentable Domain: Valid Oregon Lattitude
Attribute:
Attribute Label: LAT-MIN
Attribute Definition: Lattitude minutes
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Lattitude minutes
Attribute:
Attribute Label: LAT-SEC
Attribute Definition: Seconds of Lattitude
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Seconds of Lattitude
Attribute:
Attribute Label: LATLONG
Attribute Definition: Geographic Coordinates for cities
Attribute Definition Source: GNIS (USGS, U of O
Attribute Domain Values:
Unrepresentable Domain: Lat/Long coordinates
Attribute:
Attribute Label: LENGTH
Attribute Definition: Length of feature in internal units.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Positive real numbers that are automatically generated by the GIS.
Attribute:
Attribute Label: LONG-DEG
Attribute Definition: Longitude degrees
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Longitude degrees
Attribute:
Attribute Label: LONG-MIN
Attribute Definition: Minutes of Longitude
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Minutes of Longitude
Attribute:
Attribute Label: LONG-SEC
Attribute Definition: Seconds of Longitude
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Seconds of Longitude
Attribute:
Attribute Label: LPOLY#
Attribute Definition: Internal node number for the left polygon.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Whole numbers that are automatically generated.
Attribute:
Attribute Label: MAPNAME
Attribute Definition: Name of USGS Quad sheet the city resides in
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Valid Oregon Quad Sheet
Attribute:
Attribute Label: OR_CITYLIM#
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute Label: OR_CITYLIM-ID
Attribute Definition: User-defined feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute Label: RPOLY#
Attribute Definition: Internal node number for the right polygon.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Whole numbers that are automatically generated.
Attribute:
Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Coordinates defining the features.
Attribute:
Attribute Label: TNODE#
Attribute Definition: Internal node number for the end of an arc (to-node).
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Whole numbers that are automatically generated.
Detailed Description:
Entity Type:
Entity Type Label: or_citylim.pat
Entity Type Definition: City limit line work
Entity Type Definition Source: ODOT
Attribute:
Attribute Label: AREA
Attribute Definition: Area of feature in internal units squared.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Area of feature in internal units squared.
Attribute:
Attribute Label: COUNTY
Attribute Definition: County Name
Attribute Definition Source: GNIS
Attribute Domain Values:
Unrepresentable Domain: Character field
Attribute:
Attribute Label: DESIG
Attribute Definition: USGS Designation
Attribute Definition Source: GNIS
Attribute Domain Values:
Enumerated Domain:
Enumerated Domain Value: ppl
Enumerated Domain Value Definition: Populated Place location
Enumerated Domain Value Definition Source: usgs
Attribute:
Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute Label: FIPS
Attribute Definition: Unique County identifier code
Attribute Definition Source: USGS
Attribute Domain Values:
Unrepresentable Domain: County FIPS code
Attribute:
Attribute Label: LAT-DEG
Attribute Definition: Degrees lattitude
Attribute Definition Source: USGS
Attribute Domain Values:
Unrepresentable Domain: Valid Oregon Lattitude
Attribute:
Attribute Label: LAT-MIN
Attribute Definition: Lattitude minutes
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Lattitude minutes
Attribute:
Attribute Label: LAT-SEC
Attribute Definition: Seconds of Lattitude
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Seconds of Lattitude
Attribute:
Attribute Label: LATLONG
Attribute Definition: Geographic Coordinates for cities
Attribute Definition Source: GNIS (USGS, U of O
Attribute Domain Values:
Unrepresentable Domain: Lat/Long coordinates
Attribute:
Attribute Label: LONG-DEG
Attribute Definition: Longitude degrees
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Longitude degrees
Attribute:
Attribute Label: LONG-MIN
Attribute Definition: Minutes of Longitude
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Minutes of Longitude
Attribute:
Attribute Label: LONG-SEC
Attribute Definition: Seconds of Longitude
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Seconds of Longitude
Attribute:
Attribute Label: MAPNAME
Attribute Definition: Name of USGS Quad sheet the city resides in
Attribute Definition Source: GNIS (USGS and U of O)
Attribute Domain Values:
Unrepresentable Domain: Valid Oregon Quad Sheet
Attribute:
Attribute Label: NAME
Attribute Definition: City Name
Attribute Definition Source: GNIS
Attribute Domain Values:
Unrepresentable Domain: Character field
Attribute:
Attribute Label: OR_CITYLIM#
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute Label: OR_CITYLIM-ID
Attribute Definition: User-defined feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: unique whole numbers that are user generated.
Attribute:
Attribute Label: PERIMETER
Attribute Definition: Perimeter of feature in internal units.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Perimeter of feature in internal units.
Attribute:
Attribute Label: POLY#
Attribute Definition: Internal feature number
Attribute Definition Source: Computed
Attribute Domain Values:
Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute Label: RINGS_NOK
Attribute Definition: process-assigned feature number
Attribute Definition Source: User-defined
Attribute Domain Values:
Unrepresentable Domain: Relict field from prior shapefile-->coverage conversion process
Attribute:
Attribute Label: RINGS_OK
Attribute Definition: process-assigned feature number
Attribute Definition Source: User-defined
Attribute Domain Values:
Unrepresentable Domain: Relict field from prior shapefile-->coverage conversion process
Attribute:
Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:
Unrepresentable Domain: Feature geometry.
Attribute:
Attribute Label: SUBCLASS
Attribute Definition: process-assigned feature number
Attribute Definition Source: User-defined
Attribute Domain Values:
Unrepresentable Domain: Relict field from prior shapefile-->coverage conversion process
Attribute:
Attribute Label: SUBCLASS#
Attribute Definition: process-assigned feature number
Attribute Definition Source: User-defined
Attribute Domain Values:
Unrepresentable Domain: Relict field from prior shapefile-->coverage conversion process
Overview Description:
Entity and Attribute Overview:
Items used in the dataset:
Name- Name of city bounded by the citylimits polygons.
Desig- GNIS designation showing that an entity was a city.
County - County the city is in.
Fips - Census bureau fips code valid numbers between 41001-
41071. These numbers are unique identifiers for each county
in the USA.
Entity and Attribute Detail Citation: Not Available
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Person Primary:
Contact Person: Aimee Lesieutre or Steve Barnett
Contact Organization: Oregon State Service Center for Geographic Information Systems
Contact Position: Data Administrator
Contact Address:
Address Type: mailing address
Address: 155 Cottage St. NE
City: Salem
State or Province: OR
Postal Code: 97310
Country: USA
Contact Voice Telephone: (503) 378-2166
Contact Facsimile Telephone: (503) 986-3242
Contact Electronic Mail Address: data@sscgis.state.or.us
Hours of Service: 8am to 5pm
Resource Description: City Limits Coverage Digitized by ODOT
Distribution Liability:
Ecotrust makes no express or implied warrantees with respect to
the character, fitness, or accuracy of the information presented,
or their appropriateness for any users purposes.
Standard Order Process:
Digital Form:
Digital Transfer Information:
Format Name: ESRI ArcInfo Coverage or Arcview Shapefile
Digital Transfer Option:
Online Option:
Computer Contact Information:
Network Address:
Network Resource Name: City Limits coverage
Fees: None
Custom Order Process: contact data administrator at SSCGIS
Technical Prerequisites: none
Available Time Period:
Time Period Information:
Single Date/Time:
Calendar Date: 1/1/1895
Time of Day: Unknown
Metadata Reference Information
Section Index
Metadata Date: 3/1/2004
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: Ecotrust
Contact Address:
Address Type: mailing address
Address: 721 NW 9th Suite 200
City: Portland
State or Province: Oregon
Postal Code: 97209
Country: USA
Contact Voice Telephone: 503-227-6225
Contact Instructions: Ecotrust created FGDC metadata from the originator's metadata so we can serve the GIS information. Please refer back to the originator for updates and additional information or clarification.
Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
Metadata Extensions:
Online Linkage: http://www.esri.com/metadata/esriprof80.html
Profile Name: ESRI Metadata Profile
SMMS Metadata report generated 6/10/2005
