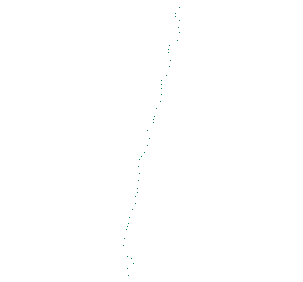

Central Newport Crest Characteristics 1999

Citation:

Citation Information:

Originator:
Oregon Department of Land Conservation and Development, Shoreland Solutions

Publication Date: 19990630
Title: Central Newport Crest Characteristics 1999
Edition: NA
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Salem, Oregon
Publisher: Oregon Department of Land Conservation and Development

Online Linkage: http://www.lcd.state.or.us/coast/
Larger Work Citation:

Citation Information:

Originator:
Shoreland Solutions; Oregon Department of Land Conservation and Development

Publication Date: June, 1999
Title:
Oregon Coastal Natural hazards Geographic Information System (Version 99.1)

Publication Information:

Publication Place: Salem, Oregon
Publisher:
Shoreland Solutions; Oregon Department of Land Conservation and Development

Online Linkage: http://www.lcd.state.or.us/coast/

Description:

Abstract:
Field work to obtain data needed to develop this layer was carried out by Shoreland Solutions during late August-early
September of 1996 and late August-early September of 1998.
Specifically, the location and elevation of reference
features including the vegetation line, toe of the
foredune, crest of the foredune, toe of the bluff, and
crest of the bluff were established at ~150 to 300 foot
increments along the study area shoreline.

Purpose:
The' Coastal Natural Hazards Geographic Information System' (CNHGIS) is a database, decision support and tracking
system intended to assist city and county planners, state
agency representatives, and others involved in the
management of chronic coastal natural hazards

Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 1996
Beginning Time: Unknown
Ending Date: 1999
Ending Time: Unknown

Currentness Reference: 1999

Status:

Progress: Complete
Maintenance and Update Frequency: Continually

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.0674
East Bounding Coordinate: -124.0564
North Bounding Coordinate: 44.6535
South Bounding Coordinate: 44.6226

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Beach
Theme Keyword: Erosion
Theme Keyword: Shoreline
Theme Keyword: Shoretype

Place:

Place Keyword Thesaurus: None
Place Keyword: Lincoln
Place Keyword: Newport
Place Keyword: Oregon
Place Keyword: Pacific
Place Keyword: Central Newport

Access Constraints: None
Use Constraints: Not to be used for legal purposes. See Distribution Liability
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Shoreland Solutions
Contact Person: John Marra

Contact Position: Geologist
Contact Address:

Address Type: mailing and physical address
Address: 800 NE Oregon St #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: (503) 373-0050
Contact Facsimile Telephone: (503) 731-4068
Contact Electronic Mail Address: marrajj@fbo.com

Native Data Set Environment: ArcView version 3.1 shapefile format

Attribute Accuracy:

Attribute Accuracy Report: The Attributes are considered accurate.

Logical Consistency Report: The data are believed to be Logically Consistent
Completeness Report: The Data are complete
Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report:
Confidence in the horizontal positional accuracy is relatively high.

Vertical Positional Accuracy:

Vertical Positional Accuracy Report: NA

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator:
Oregon Department of Land Conservation and Development, Shoreland Solutions

Publication Date: 19990630
Title: Central Newport Crest Characteristics 1999
Edition: NA
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Salem, Oregon
Publisher: Oregon Department of Land Conservation and Development

Online Linkage: http://www.lcd.state.or.us/coast/
Larger Work Citation:

Citation Information:

Originator:
Shoreland Solutions; Oregon Department of Land Conservation and Development

Publication Date: June, 1999
Title:
Oregon Coastal Natural hazards Geographic Information System (Version 99.1)

Publication Information:

Publication Place: Salem, Oregon
Publisher:
Shoreland Solutions; Oregon Department of Land Conservation and Development

Online Linkage: http://www.lcd.state.or.us/coast/

Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 1996
Beginning Time: Unknown
Ending Date: 1993
Ending Time: Unknown

Source Currentness Reference: 1999

Process Step:

Process Description:
Field work to obtain data needed to develop this layer was carried out by Shoreland Solutions during late August-early
September of 1996 and late August-early September of 1998.
Specifically, the location and elevation of reference
features including the vegetation line, toe of the
foredune, crest of the foredune, toe of the bluff, and
crest of the bluff were established at ~150 to 300 foot
increments along the study area shoreline. V8-video images
of the shoreline morphology was also collected at each of
these locations. All elevations are referenced to the
National Geodetic Vertical Datum (NGVD) of 1929.

Process Date: 1999

Cloud Cover: 0

Direct Spatial Reference Method: Point
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: Point
Point and Vector Object Count: 47

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: 1_crest.dbf
Entity Type Definition: Shapefile Attribute Table
Entity Type Definition Source: None

Attribute:

Attribute Label: Crest96_id
Attribute Definition: Software generated feature ID
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 1
Range Domain Maximum: 42

Attribute:

Attribute Label: Elev
Attribute Definition: elevation of dune/bluff toe in feet referenced to NGVD29
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 16
Range Domain Maximum: 82

Attribute:

Attribute Label: Morphology
Attribute Definition: general morphologic setting of reference location
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Ss_
Attribute Definition: Shoreland Solutions reference number
Attribute Domain Values:

Unrepresentable Domain: Character Field

Overview Description:

Entity and Attribute Detail Citation:
Categories within the attribute field Toe Character are defined as follows: talus (talus); no talus (not); open sand (os);
hydrophillic vegetation (hveg); beach grass (grass);
vegetated dune (vdune); driftwood (dw); cobble beach
(cobble); shore protection structure (sps); seawall (SW);
and riprap revetment (RR). Categories within the attribute
field Vegetation Cover are defined as follows: less than
25% (25-); between 25 and 50 % (25+); between 50 and 75%
(50+); and greater than 75% (75+).

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Department of Land Conservation and Development
Contact Person: Randy Dana

Contact Position: GIS Coordinator
Contact Address:

Address Type: mailing and physical address
Address: 800 NE Oregon St #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x 31
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: randy.dana@state.or.us

Resource Description: Central Newport Crest Characteristics 1999
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE
STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK
ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.

Custom Order Process:
Please Contact Randy Dana at the Oregon Coastal program of DLCD to obtain a CD-ROM copy of the Chronic Coastal Natural
hazarda Geographic Information System (version 99.1)

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1925
Time of Day: Unknown

Metadata Date: 10/10/1999
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Department of land Conservation and Development
Contact Person: Tanya Haddad

Contact Position: NOAA CSC Fellow
Contact Address:

Address Type: Mailing and physical address
Address: 800 NE Oregon St #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: (503) 731-4065 x30
Contact Facsimile Telephone: (503)731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us

Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
