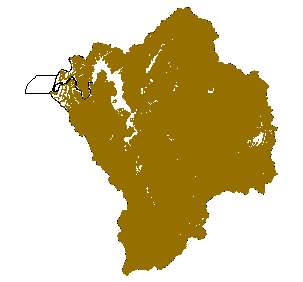

80-Foot Contour Lines for the Coquille River Watershed (1:24,000)
.gif)
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: Regional Ecosystem Office, USFS
Publication Date: 200003
Title: 80-Foot Contour Lines for the Coquille River Watershed (1:24,000)
Edition: 1999
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: North Bend, Oregon
Publisher: Southwest Oregon Province, Regional Ecosystem Office, USFS
Online Linkage: www.reo.gov
Larger Work Citation:
Citation Information:
Originator: Southwest Oregon Province, Regional Ecosystem Office, USFS
Publication Date: 200003
Title: Coos/Coquille Assessment Unit GIS CD-ROM
Online Linkage: www.reo.gov
Description:
Abstract: Depicts eighty foot Contour lines in the Coquille watershed
Purpose: Cartographic /GIS use
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Time: Unknown
Ending Date: 1999
Ending Time: Unknown
Currentness Reference: 1999
Status:
Progress: Complete
Maintenance and Update Frequency: None planned
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -121.0117
East Bounding Coordinate: -120.2146
North Bounding Coordinate: 43.4101
South Bounding Coordinate: 42.7219
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Topography
Theme Keyword: Elevation
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Place Keyword: Coast
Access Constraints: None
Use Constraints:
Contours are derrived from DEMs which typically fall into one of two categories of vertical 'error' determined by ""Root Mean Square Error"" (RMSE): 0-7 meters vertical or 8-15 meters vertical. The RMSE is a statistic determined by
comparing a sample of elevations contained in the DEM at given horizontal locations against true elevations at those
same locations.
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: US Forest Service
Contact Person: Anne Boeder/ Jim McGuinnes
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 1300 Airport Way
City: North Bend
State or Province: Oregon
Postal Code: 97459
Country: USA
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Logical Consistency Report: line topology present
Completeness Report: No extensive tests were performed.
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: Unknown
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: Unknown
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator: US Geological Survey, US Forest Service, Bureau of Land Management
Publication Date: 199704
Title:
30 Meter Digital Elevation Model Quadgrangles for the
Coquille Basin
Edition: 1997
Geospatial Data Presentation Form: map
Publication Information:
Publication Place: Salem, Oregon
Publisher: Oregon State Service Center for GIS
Other Citation Details:
BASELINE97 is a cooperative effort involving federal,
state, local, and private entities in composing a statewide
digital base data set of hydrography, transportation,
boundary, public Land survey system, DRG (Digital Raster
Graphics-quad scans) and DEM (Digital Elevation Model)
themes at the 1:24K scale for the state of Oregon. The
State Service Center for Geographic Information System's
role is one of coordination, organization, and distribution
of the BASELINE97 themes.
Online Linkage: http://www.sscgis.state.or.us
Larger Work Citation:
Citation Information:
Originator: US Geological Survey, US Forest Service, Bureau of Land Management
Publication Date: 1997
Title: Baseline '97
Publication Information:
Publication Place: Salem, Oregon
Publisher: Oregon State Service Center for GIS
Online Linkage: http://www.sscgis.state.or.us
Source Scale Denominator: 24000
Type of Source Media: Digital Files
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Time: Unknown
Ending Date: 1997
Ending Time: Unknown
Source Citation Abbreviation: 30 Meter DEMs
Process Step:
Process Description:
The 80' contours were derrived from the South West Oregon Province 30m Digital Elevation Model (DEM) file. Lattice
contour was run to create the contour lines (in meters). An Item called ""feet"" was added to the .aat file. Calculate
was performed on the meter value to obtain the feet value. Contours were then clipped to the Watershed boundary.
Process Date: 1999
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: Complete Chain
Point and Vector Object Count: 15904
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: topo80.aat
Entity Type Definition: Arc Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Feet
Attribute Definition: Elevation of contour line in Feet
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 4080
Attribute:
Attribute Label: Fnode#
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Fnode_
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Length
Attribute Definition: Length of line
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Lpoly#
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Lpoly_
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Meters
Attribute Definition: Elevation of contour line in Meters
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 1244
Attribute:
Attribute Label: Rpoly#
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Rpoly_
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Tnode#
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Tnode_
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Topo80#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Topo80-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Topo80_
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Topo80_id
Attribute Definition: User Assigned feature ID
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 4430
Range Domain Maximum: 17890
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: US Forest Service
Contact Person: Anne Boeder/ Jim McGuinnes
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 1300 Airport Way
City: North Bend
State or Province: Oregon
Postal Code: 97459
Country: USA
Resource Description: topo80
Distribution Liability:
The Southwest Oregon province cannot assure the reliability or suitability of this information for a particular purpose. Original data were compiled from various sources. Spatial information may not meet National Map Accuracy Standards. This information may be updated without notification.
Custom Order Process: Contact Distributor or download from http://www.reo.gov
Available Time Period:
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
SMMS Metadata report generated 3/27/2002
