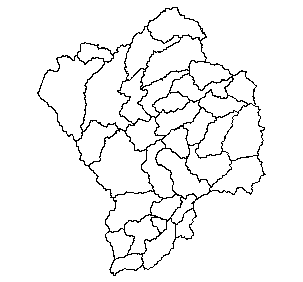

6th Field Subwatersheds of the Coquille Basin, 1999 (1:24,000)
.gif)
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator: Regional Ecosystem Office, USFS
Publication Date: 200003
Title: 6th Field Subwatersheds of the Coquille Basin, 1999 (1:24,000)
Edition: 1999
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: North Bend, Oregon
Publisher: Southwest Oregon Province, Regional Ecosystem Office, USFS
Online Linkage: www.reo.gov
Larger Work Citation:
Citation Information:
Originator: Southwest Oregon Province, Regional Ecosystem Office, USFS
Publication Date: 200003
Title: Coos/Coquille Assessment Unit GIS CD-ROM
Online Linkage: www.reo.gov
Description:
Abstract: Dataset depicts 6th field subwatersheds of the Coquille Basin, compiled from 2 federal agency archives (best available).
Purpose: For use in GIS watershed analyses / planning.
Supplemental Information:
The 6th field subwatersheds were derived by the BLM and USFS. Contact each agency for additional information on how
this was done. Although the Agencies' coverages do not currently match exactly, the REO is working with the 2 agencies to derive an agreed upon single 6th field coverage for South West Oregon Province.
Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Time: Unknown
Ending Date: 1999
Ending Time: Unknown
Currentness Reference: 1999
Status:
Progress: Complete
Maintenance and Update Frequency: Unknown
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -119.5185
East Bounding Coordinate: -118.7088
North Bounding Coordinate: 43.4063
South Bounding Coordinate: 42.7087
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Watersheds
Theme Keyword: Sub-watersheds
Theme Keyword: hydrology
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Place Keyword: Coast
Access Constraints: None
Use Constraints: None, see supplemental info, and liability disclaimer.
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: US Forest Service
Contact Person: Anne Boeder/ Jim McGuinnes
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 1300 Airport Way
City: North Bend
State or Province: Oregon
Postal Code: 97459
Country: USA
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Logical Consistency Report: Polygon Topology Present
Completeness Report: See supplemental Info
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: NA
Vertical Positional Accuracy:
Vertical Positional Accuracy Report: NA
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator:
Bureau of Land Management (BLM), Coos Bay District
U.S. Forest Service (USFS), Siskiyou National Forest
Publication Date: 1999
Title: Watershed.e00 (BLM), Watershed (USFS)
Edition: 1999
Geospatial Data Presentation Form: map
Publication Information:
Publication Place: Unknown
Publisher:
Bureau of Land Management (BLM), Coos Bay District
U.S. Forest Service (USFS), Siskiyou National Forest
Online Linkage: NA
Source Scale Denominator: 24000
Type of Source Media: Electronic file
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date:
Beginning Time: Unknown
Ending Date: 1999
Ending Time: Unknown
Source Currentness Reference: 1999
Source Contribution:
Since the BLM coverage did not cover the lower portion of the project area, the USFS watershed coverage was used to
fill in the gap. The boundaries of the 6th field subwatersheds did not match between the two coverages. The USFS coverage was edited to match the BLM boundaries. Numerous edge slivers were edited out from the USFS coverage before joining to the BLM file. The subwatersheds obtained from the USFS are as follows:
Johnson Creek
Middle Coquille River
Elk Creek
Coal Creek
Wooden Rock Creek
Upper Coquille River
Lower Coquille River
North Fork Rock Creek
All others are from the BLM coverage.
Process Step:
Process Description:
Downloaded the BLM watershed coverage. Eliminated the 7th field watersheds since they were not to be included in the
project. Since the BLM coverage did not cover the lower portion of the project rea, the USFS watershed coverage was used to fill in the gap. The boundaries of the 6th field subwatersheds did not match between the two coverages. The USFS coverage was edited to match the BLM boundaries. Numerous edge slivers were edited out from the USFS coverage before joining to the BLM file.
Process Date: 1999
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 1117
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: sixhucs.pat
Entity Type Definition: Polygon Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Sixhucs#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Sixhucs-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Sixhucs_
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Sixhucs_id
Attribute Definition: User Assigned feature ID
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 180
Attribute:
Attribute Label: Subwatersh
Attribute Domain Values:
Unrepresentable Domain: Character Field
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Resource Description: sixhucs (coquille)
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE
PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE
STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK
ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.
Available Time Period:
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
