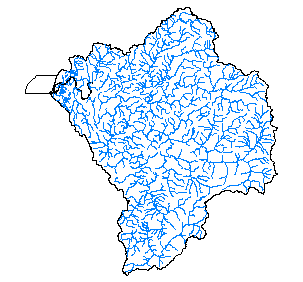

303d Water Quality Limited Streams in the Coquille Basin 1998

Citation:

Citation Information:

Originator: Oregon Department of Environmental Quality
Publication Date: 1998
Title: 303d Water Quality Limited Streams in the Coquille Basin 1998
Edition: 1998
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Salem, OR
Publisher: Oregon Department of Environmental Quality

Online Linkage: http://www.deq.state.or.us/
Larger Work Citation:

Citation Information:

Originator: Oregon Department of Environmental Quality
Publication Date: 1998
Title: 303d listed streams of Oregon 1998
Publication Information:

Publication Place: Salem, OR
Publisher: Salem, OR

Online Linkage: http://www.sscgis.state.or.us/pub/data/statewide/k100/d303_98.txt

Description:

Abstract: This line theme contains a spatial representation of the 303(d) list and should be used in conjunction with the actual 303(d) list.
Purpose: This layer was developed in order to portray spatially some elements of the 303(d) list and to assist in the 303(d) list development process.

Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 1998
Beginning Time: Unknown
Ending Date: 1998
Ending Time: Unknown

Currentness Reference: 1998

Status:

Progress: Complete
Maintenance and Update Frequency: Continually

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -121.0102
East Bounding Coordinate: -120.2464
North Bounding Coordinate: 43.3811
South Bounding Coordinate: 42.7476

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Water Quality
Theme Keyword: 303d
Theme Keyword: Water Quality Limited Waterbodies

Place:

Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Place Keyword: Coast

Access Constraints: None
Use Constraints:
It is emphasized that the GIS layers are graphic representations of the 303(d) list. Where the 303(d) list and the GIS representation differ, the 303(d)list takes precedence. The 303(d) list document, ""Oregon's Approved 1998 Section 303(d) Decision Matrix"" issued November 1998 by the Oregon Department of Environmental Quality is the document of record. Users are advised that these layers should not be used without the 303(d) list. There may be both revisions and corrections to the GIS representation without notice. Care was taken in the development of these GIS layers, but they are made available ""as is"" . There are no warranties, express or implied, including the warranty of fitness for a particular purpose, accompanying these layers. Notification of any discrepancies between the GIS representation and the 303(d) list will be appreciated.
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Department of Environmental Quality
Contact Person: Joe Bernert or Amy Clark-Zimmerly

Contact Address:

Address Type: mailing and physical address
Address: 811 SW 6th Avenue
City: Portland
State or Province: Oregon
Postal Code: 97204
Country: USA

Contact Voice Telephone: 503-229-6883

Native Data Set Environment: Arc/Info coverage format

Logical Consistency Report: Built for line topology.
Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report:
The source for the streams, lakes and reservoirs contained in these GIS files is the 1:100,000-scale Pacific Northwest River Reach data layer developed by the United States Geological Survey and other Federal and State agencies and the northwest Tribes (http://www.streamnet.org/pnwr/pnwrhome.html)
Vertical Positional Accuracy:

Vertical Positional Accuracy Report: NA

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: Oregon Department of Environmental Quality
Publication Date: 1998
Title: Streams, Lakes and Reservoirs on Oregon's 1998 303(d) list of Water Quality Limited Waterbodies.Theme name: S303_98 (streams--lines)
Edition: 1998
Geospatial Data Presentation Form: map
Publication Information:

Publication Place: Salem, OR
Publisher: Oregon Department of Environmental Quality

Other Citation Details:
Please see the DEQ Internet page at http://waterquality.deq.state.or.us/wq/303dlist/303dpage.htm or call the DEQ Water Quality Division at (503) 229 - 5279 or toll free at 1 (800) 452 - 4011 to obtain the 303(d)list and related documents. The source for the streams, lakes and reservoirs contained in these GIS files is the 1:100,000-scale Pacific Northwest River Reach data layer developed by the United States Geological Survey and other Federal and State agencies and the northwest Tribes (http://www.streamnet.org/pnwr/pnwrhome.html).
Streams, lakes and reservoirs were originally selected from the river reach files based on the 1994/96 303(d) list and saved to 303(d) layers by GIS staff of Region 10 U.S. Environmental Protection Agency (EPA) and GIS staff of the Oregon Department of Environmental Quality (DEQ). The 1998 representations are updates of the 1994/96 GIS layers. It is emphasized that the GIS layers are graphic representations of the 303(d) list. Where the 303(d) list and the GIS representation differ, the 303(d) list takes precedence. The 303(d) list document, ""Oregon's Approved 1998 Section 303(d) Decision Matrix"" issued November 1998 by the Oregon Department of Environmental Quality is the document of record. Users are advised that these layers should not be used without the 303(d) list. There may be both revisions and corrections to the GIS representation without notice. Care was taken in the development of these GIS layers, but they are made available ""as is"" . There are no warranties, express or implied, including the warranty of fitness for a particular purpose, accompanying these layers. Notification of any discrepancies between the GIS representation and the 303(d)list will be appreciated. These layers represent waterbodies with 303(d) status only. Stream segments, lakes, reservoirs evaluated as ""OK"", ""needs data"", or ""potential concern"" will be portrayed in future GIS work.

Online Linkage: http://www.deq.state.or.us/
Larger Work Citation:

Citation Information:

Originator: Oregon Department of Environmental Quality
Publication Date: 1998
Title: 303d listed streams of Oregon 1998
Publication Information:

Publication Place: Salem, OR
Publisher: Salem, OR

Online Linkage: http://www.sscgis.state.or.us/pub/data/statewide/k100/d303_98.txt

Source Scale Denominator: 100000
Type of Source Media: electronic data file
Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 1998
Beginning Time: Unknown
Ending Date: 1998
Ending Time: Unknown

Source Currentness Reference: January 1999

Source Citation Abbreviation: 303d streams
Source Contribution: lines and attributes

Process Step:

Process Description:
Basin sub-dataset: Imported downloaded *.e00 file to ARC/INFO, clipped to Basin and converted to shapefile.
Original dataset:
Line work representing streams and lines and points representing area features, lakes and reservoirs were selected from USGS 1:100,000 river reach data files for Oregon based the 303(d) list to create new GIS layers to represent the 1994/96 303(d) list. Out of the USGS river reach data sets ONLY those features on the 303(d) list appear in these layers. The attribute scheme was revised for the stream layer for the 1998 representation. Changes (additions, removals, modifications) were made to the GIS layers as the edits were done to develop the 1998 303(d) list.

Process Date: 1999

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: Complete Chain
Point and Vector Object Count: 267

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: s303_98.aat
Entity Type Definition: Arc Attribute Table
Entity Type Definition Source: None

Attribute:

Attribute Label: Aqgrow98
Attribute Definition: aquatic growth, chlorophyll-a, nuisance aquatic vegetation
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed
Enumerated Domain Value: 1
Enumerated Domain Value Definition: listed

Attribute:

Attribute Label: Bac98
Attribute Definition: fecal coliform, E coli
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed
Enumerated Domain Value: 1
Enumerated Domain Value Definition: listed

Attribute:

Attribute Label: Biocrit98
Attribute Definition: biological criteria
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Attribute:

Attribute Label: Disclaim
Attribute Definition:
(this phase appears with all segments) ""Refer to the 303(d) list as document of
record"

Attribute Domain Values:

Unrepresentable Domain: 50-Character Field

Attribute:

Attribute Label: Do98
Attribute Definition: dissolved oxygen
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed
Enumerated Domain Value: 1
Enumerated Domain Value Definition: listed

Attribute:

Attribute Label: Feat_name
Attribute Definition: the name of the waterbody feature,
Attribute Domain Values:

Unrepresentable Domain: 60-Character Field

Attribute:

Attribute Label: Flow98
Attribute Definition: flow modification
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Attribute:

Attribute Label: Fnode#
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Fnode_
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Hab98
Attribute Definition: habitat modification
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed
Enumerated Domain Value: 1
Enumerated Domain Value Definition: listed

Attribute:

Attribute Label: Huc
Attribute Definition: USGS hydrologic unit code
Attribute Domain Values:

Unrepresentable Domain: 8 integer Numeric Field

Attribute:

Attribute Label: Huc_6
Attribute Domain Values:

Unrepresentable Domain: Numeric Field

Attribute:

Attribute Label: Length
Attribute Definition: Length of line
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Lpoly#
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Lpoly_
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Nut98
Attribute Definition: nutrients, phosphorus
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Attribute:

Attribute Label: Ph98
Attribute Definition: pH
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Attribute:

Attribute Label: Rpoly#
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Rpoly_
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Rrn
Attribute Definition:
USGS River Reach Number :(a concatenation of USGS Hydrologic Unit Code, Segment Number, and River Mile Index), 17 character field (Please note: This attribute should be used with caution as a unique linking code. This layer may not reflect most current USGS reach files. Some reaches have been split to better represent 303(d)waterbody extents.)
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: S303_98#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: S303_98-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: User Defined

Attribute:

Attribute Label: S303_98c_
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 33
Range Domain Maximum: 352

Attribute:

Attribute Label: S303_98c_i
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 447
Range Domain Maximum: 1640

Attribute:

Attribute Label: Sed98
Attribute Definition: sedimentation
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Attribute:

Attribute Label: Str98_
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 447
Range Domain Maximum: 1640

Attribute:

Attribute Label: Str98_id
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 4689
Range Domain Maximum: 58754

Attribute:

Attribute Label: Tdg98
Attribute Definition: total dissolved gas
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Attribute:

Attribute Label: Temp98
Attribute Definition: temperature
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed
Enumerated Domain Value: 1
Enumerated Domain Value Definition: listed

Attribute:

Attribute Label: Tnode#
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Tnode_
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Tox98
Attribute Definition: toxics
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Attribute:

Attribute Label: Tribal
Attribute Definition: stream on tribal lands (E = entirely on tribal lands, P = partially on tribal lands)
Attribute Domain Values:

Unrepresentable Domain: 1-Character Field

Attribute:

Attribute Label: Turb98
Attribute Definition: turbidity
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 0
Enumerated Domain Value Definition: not listed

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Department of Environmental Quality
Contact Person: Joe Bernert or Amy Clark-Zimmerly

Contact Address:

Address Type: mailing and physical address
Address: 811 SW 6th Avenue
City: Portland
State or Province: Oregon
Postal Code: 97204
Country: USA

Contact Voice Telephone: 503-229-6883

Resource Description: 1998 303d - listed streams
Distribution Liability:
It is emphasized that the GIS layers are graphic representations of the 303(d) list. Where the 303(d) list and the GIS representation differ, the 303(d) list takes precedence. The 303(d) list document, "Oregon's Approved 1998 Section 303(d) Decision Matrix" issued November 1998 by the Oregon Department of Environmental Quality is the document of record. Users are advised that these layers should not be used without the 303(d) list. There may be both revisions and corrections to the GIS representation without notice. Care was taken in the development of these GIS layers, but they are made available ""as is"" . There are no warranties, express or implied, including the warranty of fitness for a particular purpose, accompanying these layers. Notification of any discrepancies between the GIS representation and the 303(d)list will be appreciated.
Custom Order Process:
Contact distributor, or download from http://www.sscgis.state.or.us/pub/sources.html

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date:
Time of Day: Unknown

Metadata Date: 1/1/2000
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: Tanya Haddad

Contact Position: DEMIS Coordinator
Contact Address:

Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us

Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
